Cutting-Edge Machine In Heavy-Duty Turning Tasks

1. High Precision and Efficiency: The CNC Lathe is designed to deliver exceptional precision and efficiency in heavy turning tasks, ensuring superior machining results.

2. Versatile Selection of Tools: Equipped with a variety of tools including a boring cutter gripper body and boring bar, this machine enhances the boring capabilities of the borehole in any workpiece.

3. Robust and Shock-resistant Construction: The high-strength boring bar, with a diameter range of 100-800mm, provides excellent shock resistance, enabling seamless and reliable boring operations.

4. Simultaneous Processing of Internal Gaps and Outer Circles: The CNC Lathe is ideal for simultaneous processing of both internal gaps and outer circles in heavy workpieces, streamlining the entire processing procedure.

5. Unmatched Accuracy and Productivity: With its unique design and precision engineering, this CNC Lathe is the go-to tool for professionals seeking utmost accuracy and productivity in their machining operations.

Contact Now E-Mail Telephone

Product Details

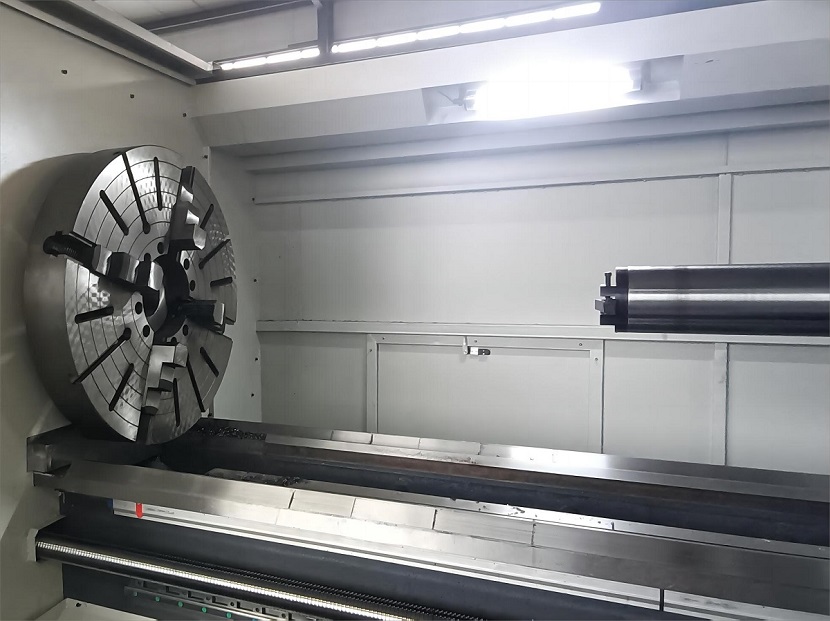

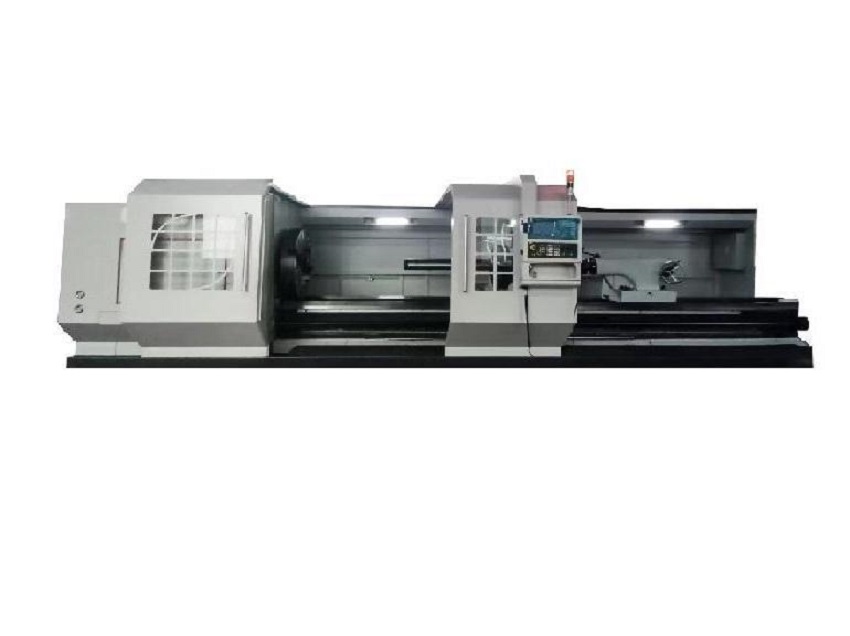

The high-performance CNC Lathe, a cutting-edge machine designed to deliver unparalleled precision and efficiency in heavy-duty turning tasks. This superior CNC lathe offers a versatile range of tools, including a boring cutter gripper body and boring bar, to enhance the boring capabilities of the borehole in any workpiece.

With a diameter range of 100-800mm, this CNC lathe boasts a high-strength and robustly constructed boring bar that ensures excellent shock resistance, guaranteeing seamless and reliable boring operations. Equipped with the latest technology, this CNC lathe can effortlessly handle inside gaps up to seven times the diameter of the boring bar, significantly streamlining the entire processing procedure.

Specifically engineered for precise simultaneous processing of internal gaps and outer circles in heavy workpieces, the CNC Lathe's unique design and precision-engineering make it an indispensable tool for professionals seeking utmost accuracy and productivity in their machining operations.

Invest in the CNC Lathe today to unlock unlimited potential and elevate your machining capabilities to new heights.

Cutting-Edge Machine In Heavy-Duty Turning Tasks

SPECIFICATION

SPECIFICATION		UNIT	CK61100D	CK61125D	CK61140D	CK61125L	CK61140L	CK61160L	CK61180L	CK61200L	CK61125B	CK61140B	CK61160B	CK61180B	CK61200B
Capacity	The maximum load capacity of the two tops	kg	6000			10000					10000
	Bed width	mm	755			1100					1100
	Maximum swivel diameter of the bed	mm	1040	1290	1440	1290	1440	1640	1840	2040	1290	1440	1640	1840	2040
	Maximum swing diameter of the tool holder	mm	650	900	1050	900	1050	1250	1450	1650	900	1050	1250	1450	1650
	Maximum workpiece length	mm				1000-5000					6000-12000
Spindle	Front bearing diameter	mm	200			200		220			200		220
	Through hole diameter	mm	130
	Cone hole		140# metric system
	Number of speed stages		Manual two gears, stepless speed adjustment in gear
	Speed range	r/min	3-300
Feed	Main motor power	kW	37
	Feed system		SIEMENS，FANUC
	Longitudinal servo motor torque	N.m	36or30
	Transverse servo motor torque	N.m	27or22
	Cutter holder cross-section		32X32			45X45
	Number of tool holder stations		Vertical 4 stations
	Cutterhead repeat positioning accuracy	mm	0.01
	Longitudinal fast forward speed	mm/min	6000
	Lateral fast forward speed	mm/min	4000
	Longitudinal feed speed	mm/min	1-2000
	Transverse feed speed	mm/min	1-2000
Tailstock	Sleeve diameter	mm	160			260
	Sleeve cone hole		6# Morse			80# metric system
	Sleeve travel	mm				300
