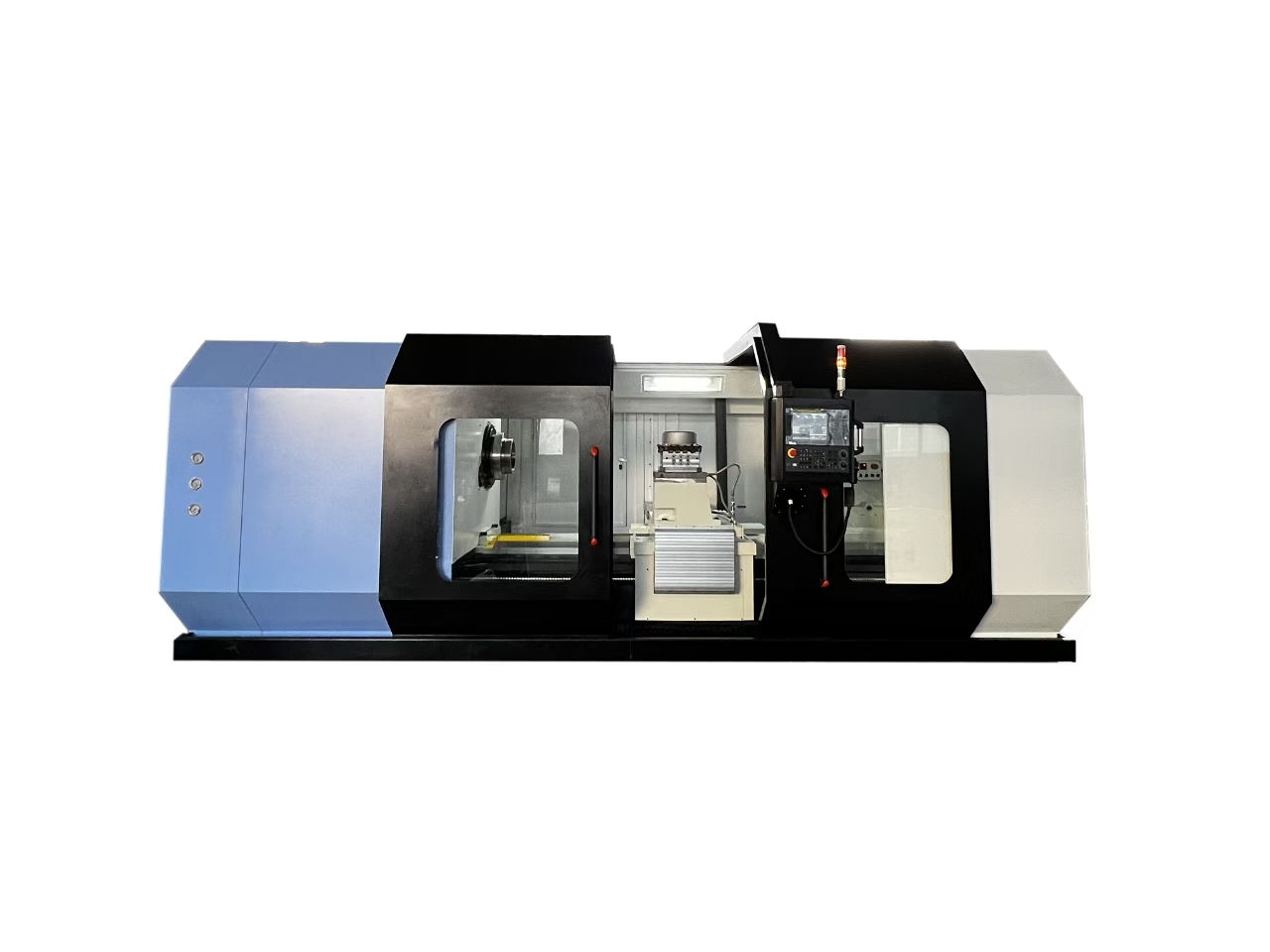

CK61125×1500 CNC Horizontal Lathe

CK61125×1500 CNC lathe is a high-speed large spindle bore CNC lathe.This machine is a universal CNC horizontal lathe, which can undertake all kinds of turning work. It can turn the inner and outer cylindrical surface,end face, curved surface, arc and metric thread, inch thread, modulus thread and diameter pitch thread of various parts, and can also perform grooving and cutting operations.

This machine tool has the inherent characteristics of high power, good rigidity, high precision and good precision retention. Equipped with Japanese FANUC system, it is safe and reliable, which can ensure the reliability of the machine well. Longitudinal (Z direction), transverse (X direction) for ball screw drive, equipped with CRT display, tool compensation, graphic display, fault diagnosis and other characteristics,the main drive system for gear drive, with sliding gear to achieve 4-stage automatic hydraulic stepless transmission, the whole machine layout is compact and reasonable, pleasant, tailstock movable center with built-in rotary structure, tailstock movement with mobile device, easy and fast operation. Carrige guideway is bonded with wear-resistant copper plate,which greatly improves the service life of the machine and has good accuracy retention. The machine can be equipped with semi-enclosed and fully enclosed protective covers.

The main features of this machine are large spindle bore and high spindle speed. The main technical parameters of the machine tool are shown in the table below.
