High-Performance CNC Lathe

1. High Precision and Efficiency: The CNC Lathe is designed to supply exceptional precision and efficiency in heavy turning tasks, ensuring most fulfilling machining results.
2. Versatile Selection of Tools: Equipped with a variety of tools including a boring cutter gripper physique and boring bar, this machine enhances the boring capabilities of the borehole in any workpiece.
3. Robust and Shock-resistant Construction: The high-strength boring bar, with a diameter range of 100-800mm, gives excellent shock resistance, enabling seamless and reliable boring operations.
4. Simultaneous Processing of Internal Gaps and Outer Circles: The CNC Lathe is ideal for simultaneous processing of each internal gaps and outer circles in heavy workpieces, streamlining the entire processing procedure.
5. Unmatched Accuracy and Productivity: With its unique diagram and precision engineering, this CNC Lathe is the go-to tool for professionals seeking utmost accuracy and productiveness in their machining operations.

Contact Now E-Mail Telephone

Product Details

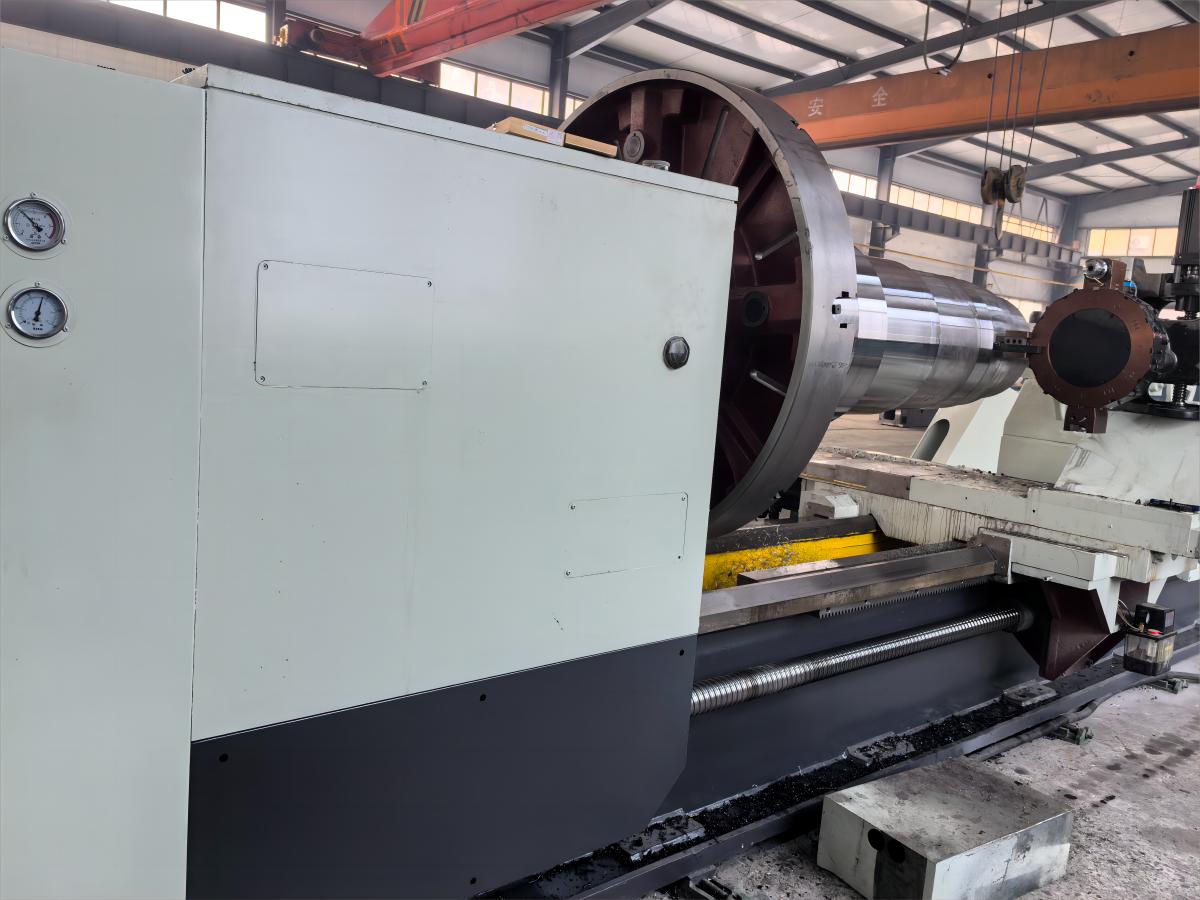

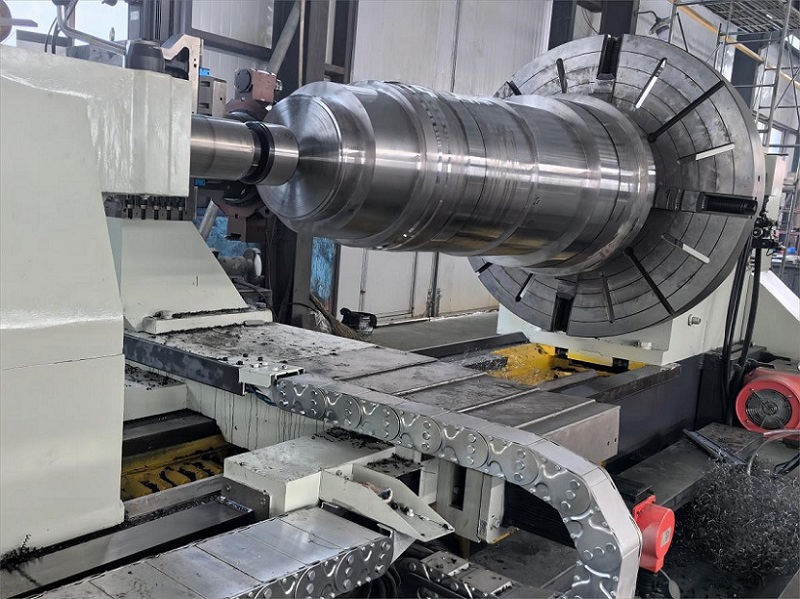

The high-performance CNC Lathe, a present day machine designed to deliver unparalleled precision and efficiency in heavy-duty turning tasks. This finest CNC lathe offers a versatile range of tools, including a boring cutter gripper physique and boring bar, to enhance the boring capabilities of the borehole in any workpiece.

With a diameter range of 100-800mm, this CNC lathe boasts a high-strength and robustly built boring bar that ensures excellent shock resistance, guaranteeing seamless and reliable boring operations. Equipped with the latest technology, this CNC lathe can without problems handle inside gaps up to seven times the diameter of the boring bar, substantially streamlining the entire processing procedure.

Specifically engineered for precise simultaneous processing of internal gaps and outer circles in heavy workpieces, the CNC Lathe's special design and precision-engineering make it an indispensable tool for specialists seeking utmost accuracy and productivity in their machining operations.

Invest in the CNC Lathe today to release unlimited potential and elevate your machining competencies to new heights.

SPECIFICATION

SPECIFICATION		UNIT	CTK61125H/N	CTK61140H/N	CTK61160H/N	CTK61180H/N	CTK61200H/N
Capacity	The maximum load capacity of the two tops	kg	15000/20000
	Bed width	mm	1100
	Maximum swivel diameter of the bed	mm	1290/1300	1440/1500	1640/1700	1840/1900	2040/2100
	Maximum swing diameter of the tool holder	mm	840/850	990/1050	1190/1250	1390/1450	1590/1650
	Maximum workpiece length	mm	1000-12000
Spindle	Front bearing diameter	mm	240/280
	Through hole diameter	mm	100
	Cone hole		140# metric system
	Number of speed stages		Manual two-gear/manual four-gear, stepless speed regulation in gear
	Speed range	r/min	3-300/2-200
Feed	Main motor power	kW	37/55

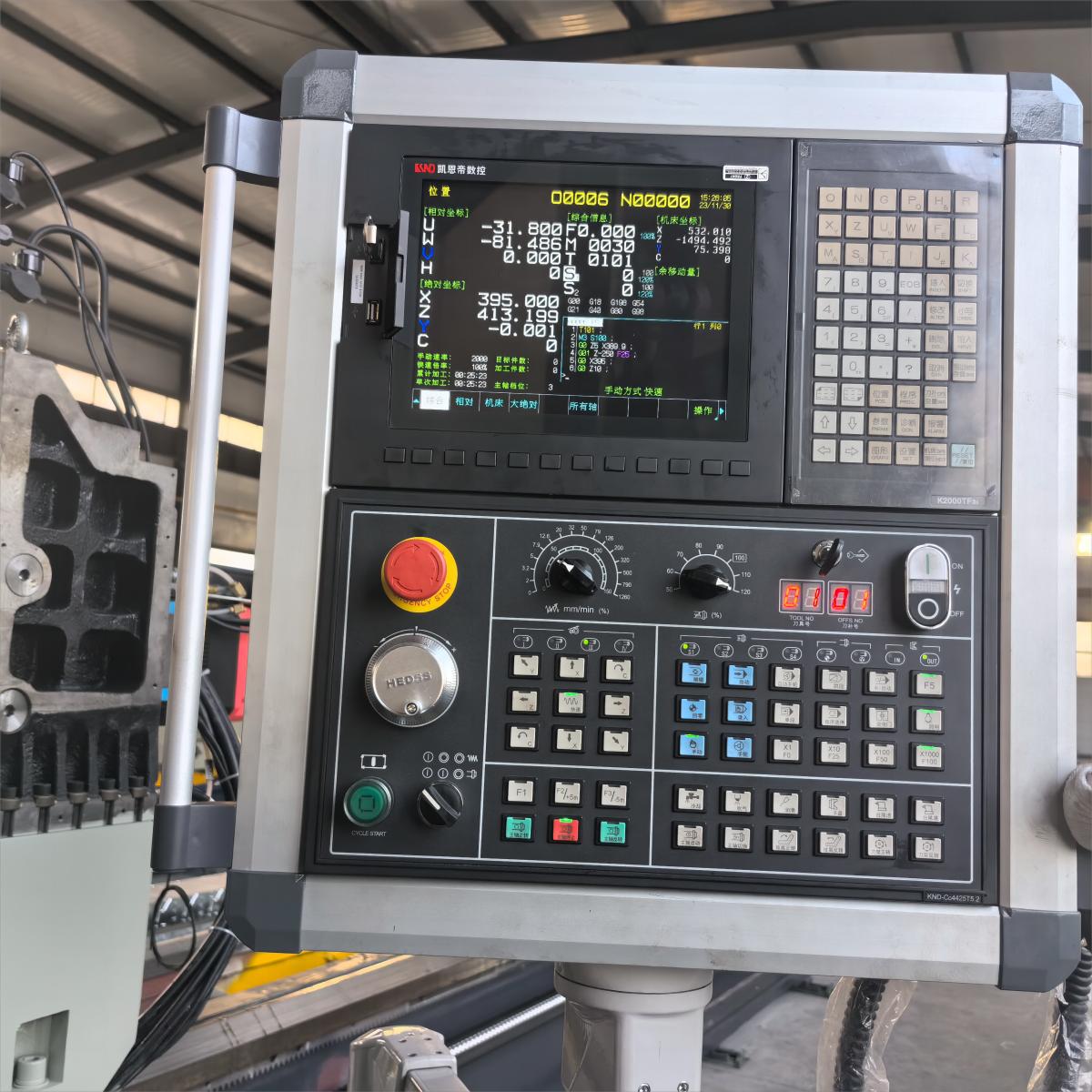

	Feed system		SIEMENS, KND CNC, GSK CNC
	Longitudinal servo motor torque	N.m	36/48or30/40
	Transverse servo motor torque	N.m	27/36or22/40
	Cutter holder cross-section		55X55/60x60
	Number of tool holder stations		Vertical 4 stations
	Cutterhead repeat positioning accuracy	mm	0.01
	Longitudinal fast forward speed	mm/min	6000
	Lateral fast forward speed	mm/min	4000
	Longitudinal feed speed	mm/min	1-2000
	Transverse feed speed	mm/min	1-2000
Tailstock	Sleeve diameter	mm	260/280
	Sleeve cone hole		80# metric system
	Sleeve travel	mm	300
Boring function	Boring bar diameter range	mm	100-800

	Boring depth range	mm	Length = Boring bar diameter*7
