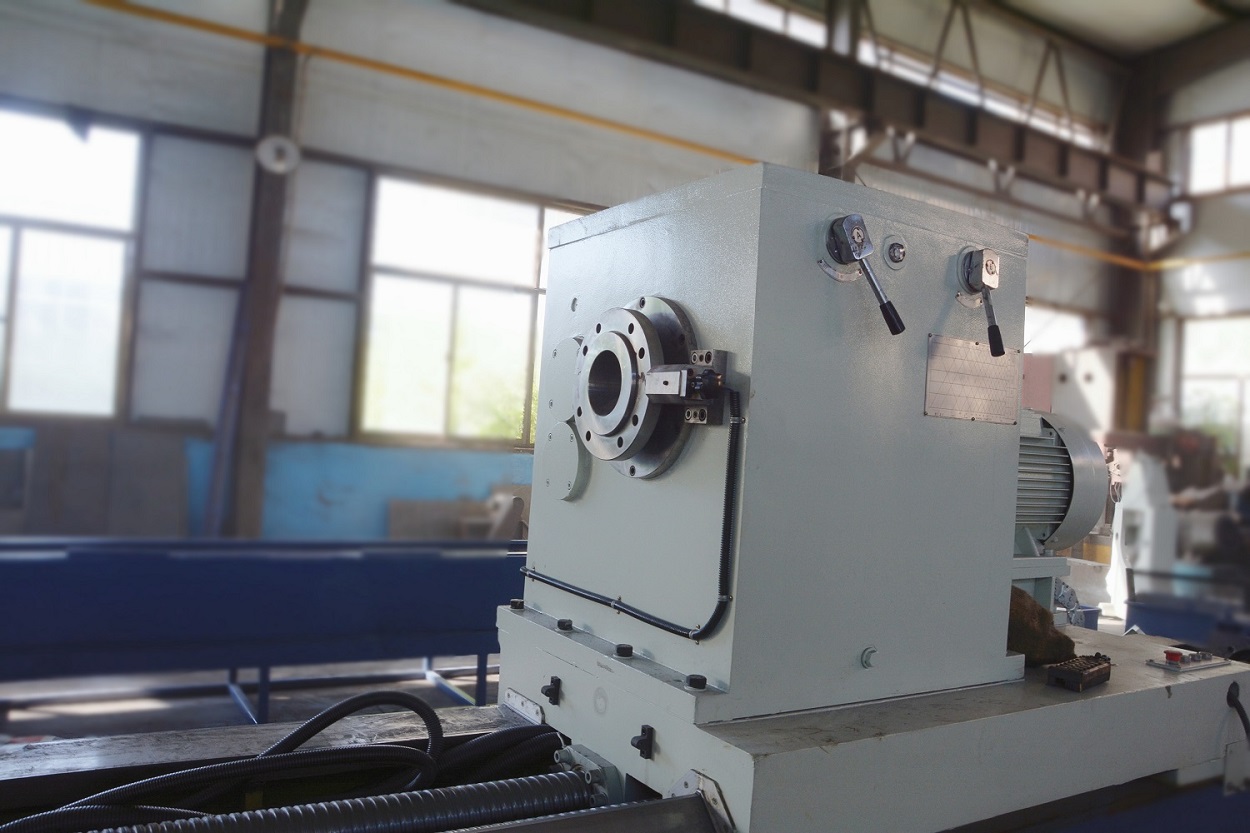

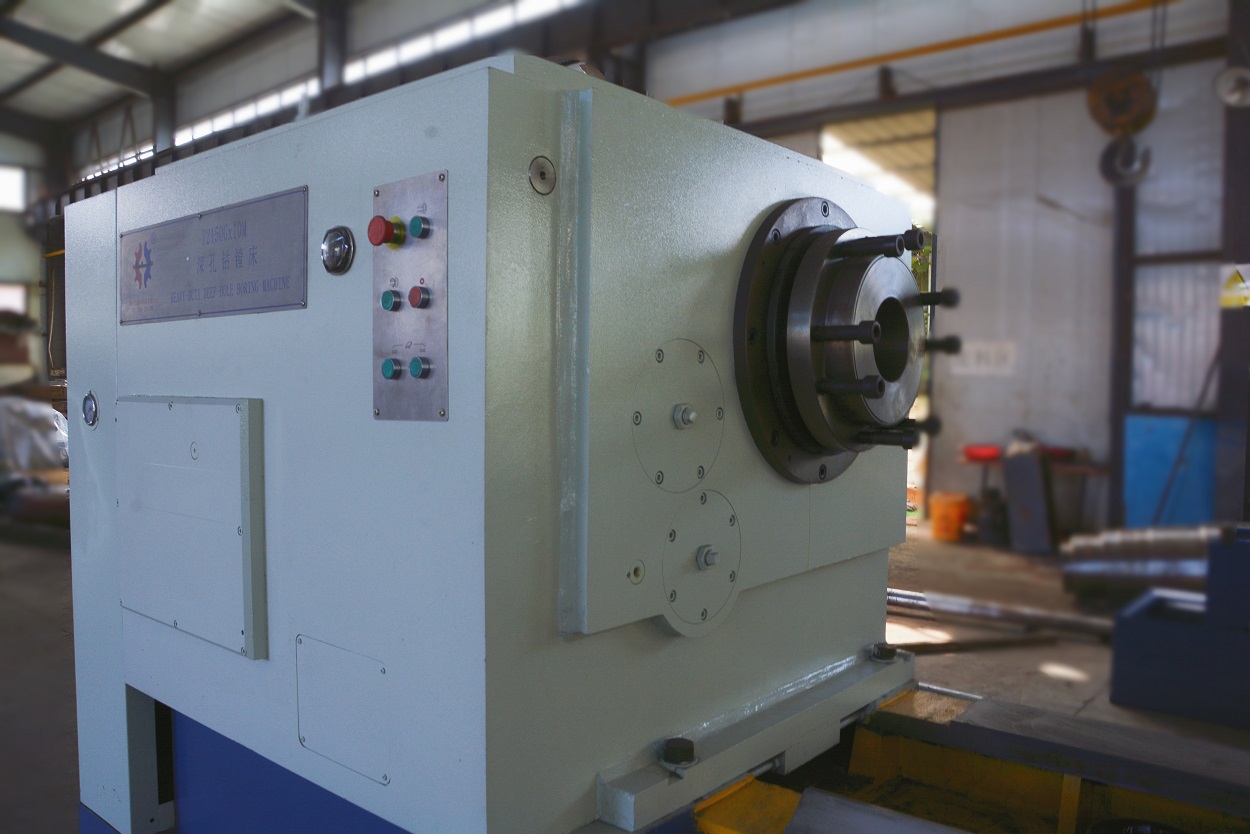

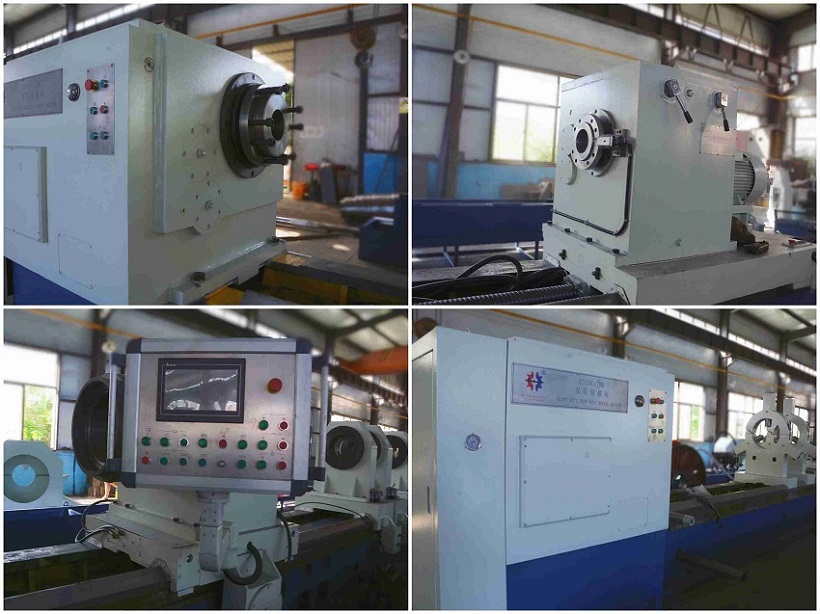

Precision And Efficient CNC Deep Hole Drilling Machine

1. Precise and Efficient: Specialized equipment for drilling and boring deep holes in cylindrical workpieces, ensuring precision and efficiency in deep hole machining.

2. Unique Oil Supply System: The oil supplied from the oil pressure head efficiently carries away metal chips from the cutting area, ensuring smooth operation.

3. Internal Metal Chips Removing Method: Utilizes the BTA method for drilling operations, effectively removing chips through the inner hole of the drilling tube, resulting in cleaner cutting areas.

4. State-of-the-Art PLC Control: Equipped with a programmable logic controller for exceptional accuracy and control during drilling processes.

5. Durable Construction: Made with high-quality materials, ensuring durability and reliability.

Contact Now E-Mail Telephone

Product Details

The CNC Deep Hole Drilling Machine is a highly specialized and technologically advanced equipment designed specifically for drilling and boring deep holes in cylindrical workpieces. This machine exemplifies precision and efficiency in deep hole machining.

One of the key features that sets this machine apart is its unique oil supply system. During the boring process, the oil supplied from the oil pressure head efficiently carries away metal chips from the cutting area to the lantern and chip conveyor located at the front of the headstock. This ensures a clean and unobstructed cutting area for optimal drilling performance. For drilling operations, the machine employs the Internal Metal Chips Removing Method (BTA method), where the oil supplied from the oil pressure head effectively removes the chips from the cutting area through the inner hole of the drilling tube. The chips are directed to the chips receiver at the back of the machine, providing a seamless and uninterrupted drilling process.

Controlled by a state-of-the-art PLC (Programmable Logic Controller), this CNC Deep Hole Drilling Machine offers exceptional accuracy and control. The PLC allows for precise control of drilling parameters such as speed, depth, and feed rate, ensuring consistent and accurate results every time. Additionally, the machine is equipped with a touch screen interface, allowing for easy and intuitive operation.

Whether you require deep holes for the automotive, aerospace, or oil and gas industries, the CNC Deep Hole Drilling Machine is the ideal choice for precision drilling. Its advanced features and reliable performance make it a valuable asset in any manufacturing facility. Invest in this CNC Deep Hole Drilling Machine to streamline your deep hole drilling processes and attain superior results.

Precision And Efficient CNC Deep Hole Drilling Machine

Specification

SPECIFICATION		T2250/2263	T2150/2163	T2150/2163（With drill pipe box）
Capacity	Diameter of boring	Φ160-Φ500mm/Φ230-Φ630mm	Φ160-Φ500mm/Φ230-Φ630mm	Φ160-Φ500mm/Φ230-Φ630mm
	Depth of boring	1000-18000mm	1000-18000mm	1000-18000mm
	Clamping diameter	Φ300-Φ650mm/Φ320-Φ780mm	Φ300-Φ650mm/Φ320-Φ780mm	Φ300-Φ650mm/Φ320-Φ780mm
Spindle	Headstock spindle aperture	Φ130mm	Φ130mm	Φ130mm
	Taper of spindle	140# metric system	140# metric system	140# metric system
	Rang of spindle speed	3.15-315r/min 21types	3.15-315r/min 21types	3.15-315r/min 21types
	Spindle speed range of drill pipe			82-490r/min 6types
Feed	Velocity range (stepless)	5-1000mm/min	5-1000mm/min	5-1000mm/min
Feed	Drag board fast moving speed	2m/min	2m/min	2m/min
Motor	Main motor power	N=30kW n=960r/min	N=30kW n=960r/min	N=30kW n=960r/min
	Motor power of drill pipe			N=30kW n=960r/min
	Feed motor power	5.5kW	5.5kW	5.5kW
	Hydraulic pump motor power	N=1.5kW n=1440r/min	N=1.5kW n=1440r/min	N=1.5kW n=1440r/min
	Coolant pump motor	11kW（1set）	5.5kW（3sets）	5.5kW（3sets）
Other	Rated working pressure of cooling system	0.3Mpa	0.6Mpa	0.6Mpa
	Cooling system flow	50m³/h	300 600 900L/min	300 600 900L/min
	Total Power	60kW	80kW	110kW
System	SIEMENS,Delta, KND CNC, GSK CNC
