Specialised Tool For Boring and Rolling Internal Holes

1. Cutting-edge Technology: Our Deep Hole Machine is geared up with advanced CNC technology, allowing for precise and environment friendly processing of cylindrical deep gap workpieces.

2. Versatility and Efficiency: This specialized machine device performs drilling, boring, enlarging, and rolling processes on various types of holes, consisting of through-holes, blind holes, and step holes. It ensures high-speed and accurate machining results.

3. High-quality Materials: Our Deep Hole Machine is constructed with durable and dependable materials, ensuring its longevity and consistent overall performance even under heavy-duty usage.

4. Wide Applications: Ideal for industries such as automotive manufacturing, aerospace, oil and gas, and hydraulic systems, our Deep Hole Machine is designed to handle a huge range of workpieces with different specifications and complexities.

5. Exceptional After-sales Support: We provide comprehensive after-sales services, including technical support, maintenance, and spare parts. Our team of specialists is dedicated to ensuring the smooth operation and durability of your Deep Hole Machine, guaranteeing your investment and production efficiency.

Contact Now E-Mail Telephone

Product Details

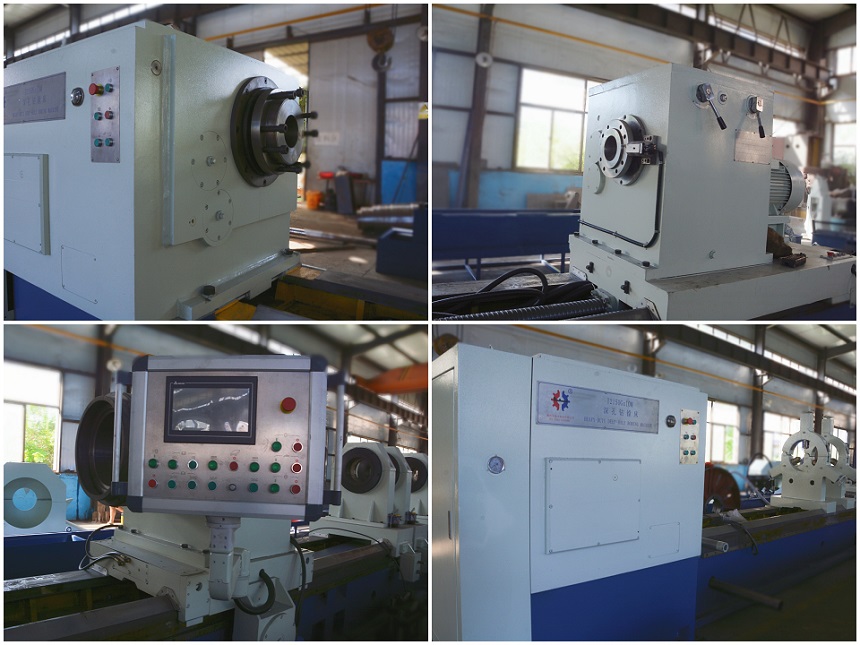

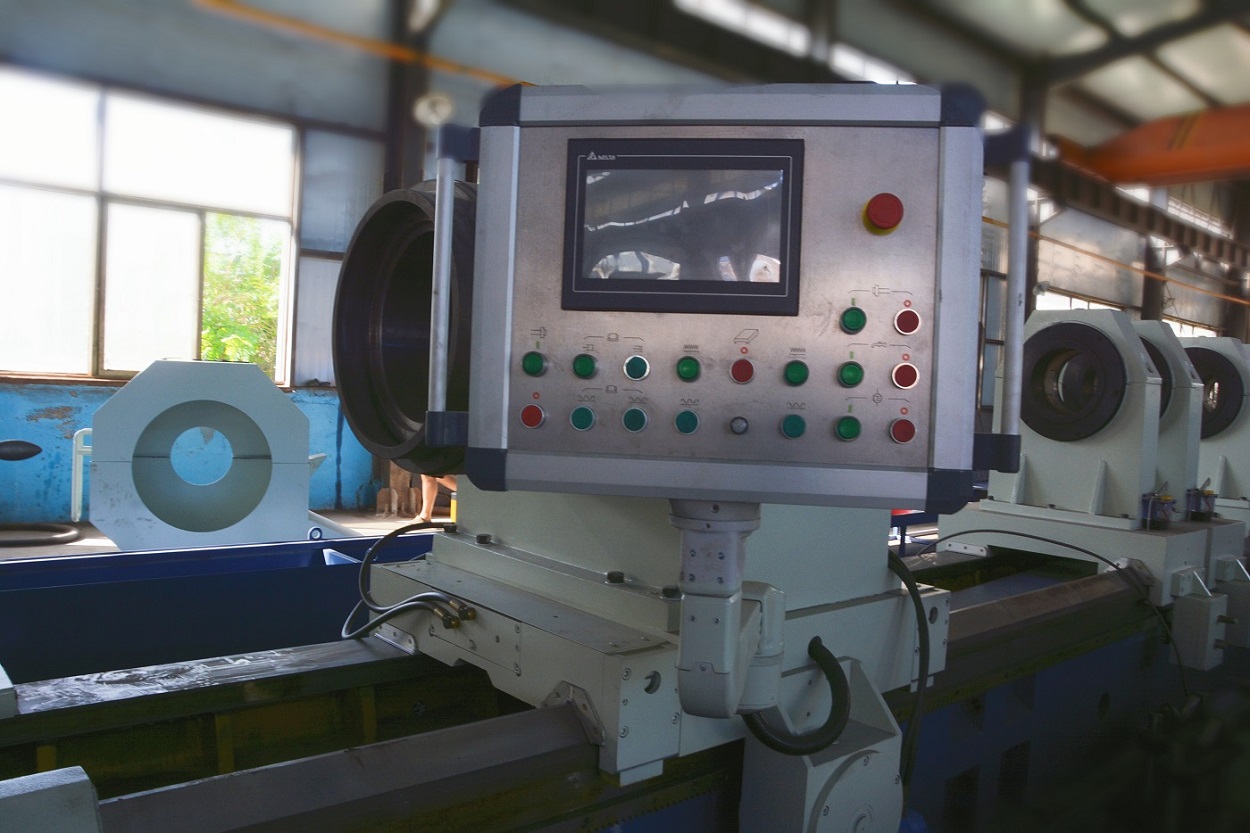

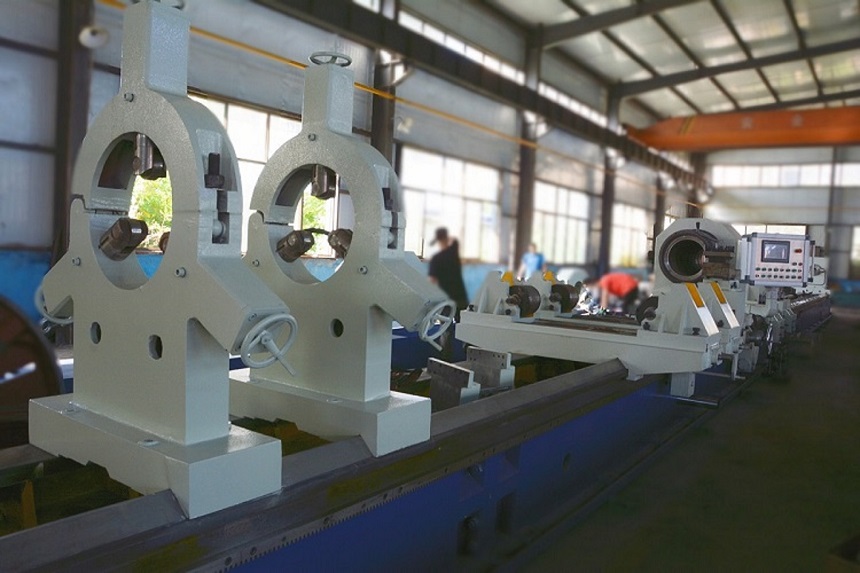

The Deep Hole Machine is a specialised machine tool designed for processing cylindrical deep gap workpieces. It is succesful of performing drilling, boring, enlarging, and rolling processes on internal holes. This versatile machine can cope with various types of holes, including through-holes, blind holes, and step holes.

During the processing operation, the workpiece rotates whilst the system (rotatable) feeds for cutting. The cutting fluid is delivered to the cutting region through the oil dispenser or the tail of the boring bar, providing cooling, lubrication, and chip removal. In drilling operations, the oil dispenser supplies slicing fluid, and the chips are discharged through the BTA (Boring And Trepanning Association) method. For boring operations, the cutting fluid and chips are discharged in advance the usage of either the oil dispenser or boring bar.

The Deep Hole Machine can be equipped with an optional drill rod box, permitting for double rotation of both the workpiece and the tool, or it can be set to single motion, depending on the specific processing needs. This characteristic adds versatility to the machine, enabling it to adapt to a wide range of processing requirements.

The CNC Deep Hole Machine is an ideal choice for precision machining tasks that involve deep hole drilling and boring operations. Its advanced features and reliable performance make it a valuable asset in industries such as automotive, aerospace, and manufacturing. Trust the Deep Hole Machine to deliver accurate and efficient processing results every time.

Specialised Tool For Boring and Rolling Internal Holes

SPECIFICATION

SPECIFICATION		T2250/2263	T2150/2163	T2150/2163（With drill pipe box）
Capacity	Diameter of boring	Φ160-Φ500mm/Φ230-Φ630mm	Φ160-Φ500mm/Φ230-Φ630mm	Φ160-Φ500mm/Φ230-Φ630mm
	Depth of boring	1000-18000mm	1000-18000mm	1000-18000mm
	Clamping diameter	Φ300-Φ650mm/Φ320-Φ780mm	Φ300-Φ650mm/Φ320-Φ780mm	Φ300-Φ650mm/Φ320-Φ780mm
Spindle	Headstock spindle aperture	Φ130mm	Φ130mm	Φ130mm
	Taper of spindle	140# metric system	140# metric system	140# metric system
	Rang of spindle speed	3.15-315r/min 21types	3.15-315r/min 21types	3.15-315r/min 21types
	Spindle speed range of drill pipe			82-490r/min 6types
Feed	Velocity range (stepless)	5-1000mm/min	5-1000mm/min	5-1000mm/min
Feed	Drag board fast moving speed	2m/min	2m/min	2m/min
Motor	Main motor power	N=30kW n=960r/min	N=30kW n=960r/min	N=30kW n=960r/min
	Motor power of drill pipe			N=30kW n=960r/min
	Feed motor power	5.5kW	5.5kW	5.5kW
	Hydraulic pump motor power	N=1.5kW n=1440r/min	N=1.5kW n=1440r/min	N=1.5kW n=1440r/min
	Coolant pump motor	11kW（1set）	5.5kW（3sets）	5.5kW（3sets）
Other	Rated working pressure of cooling system	0.3Mpa	0.6Mpa	0.6Mpa
	Cooling system flow	50m³/h	300 600 900L/min	300 600 900L/min
	Total Power	60kW	80kW	110kW
System	SIEMENS,Delta, KND CNC, GSK CNC
