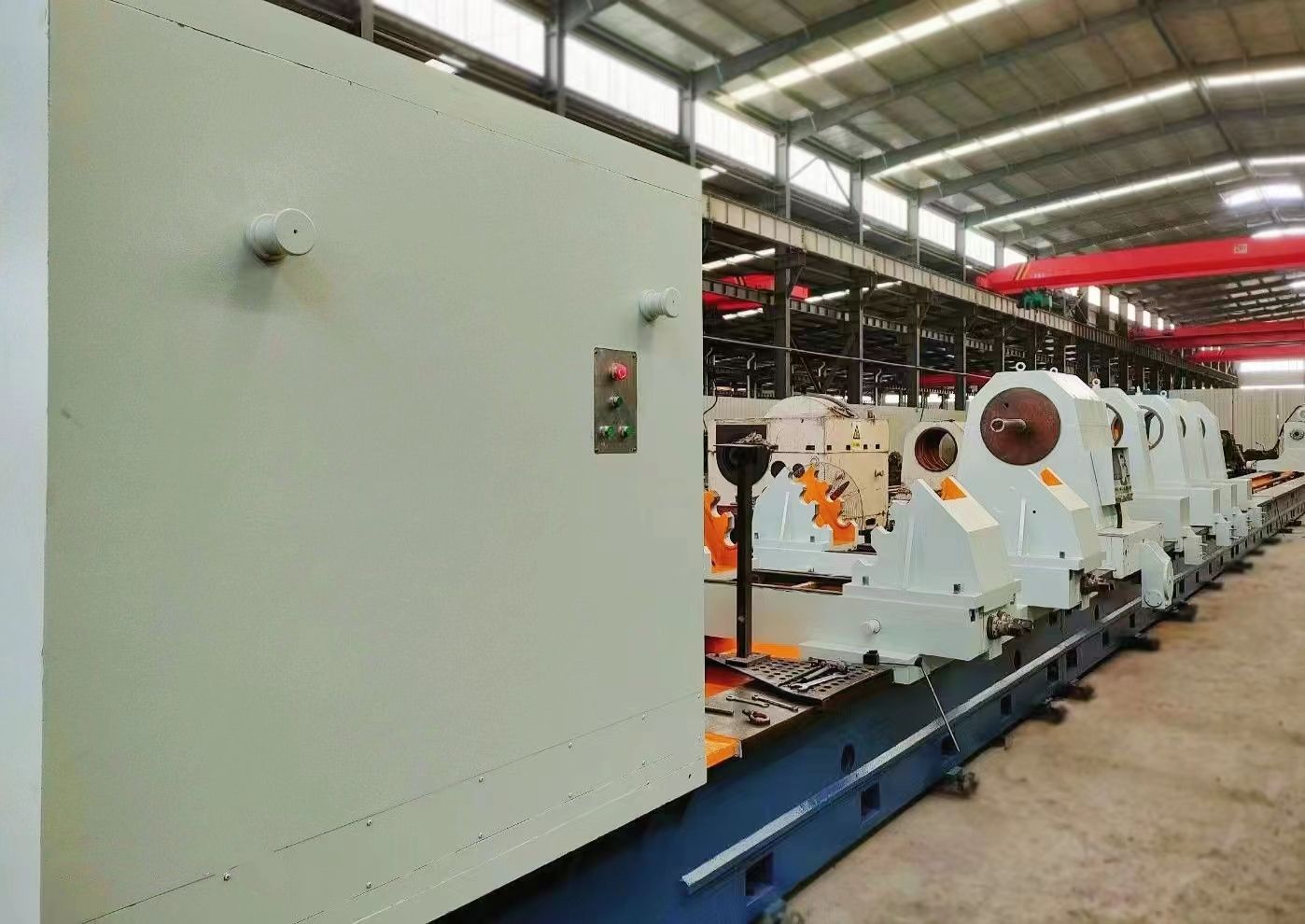

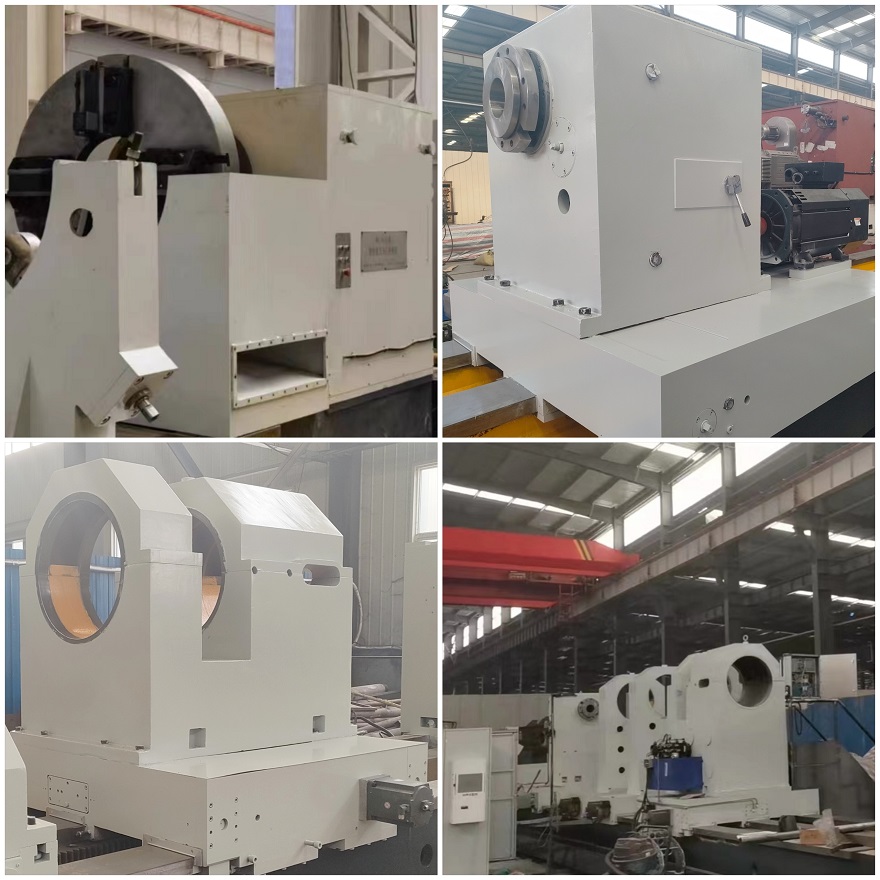

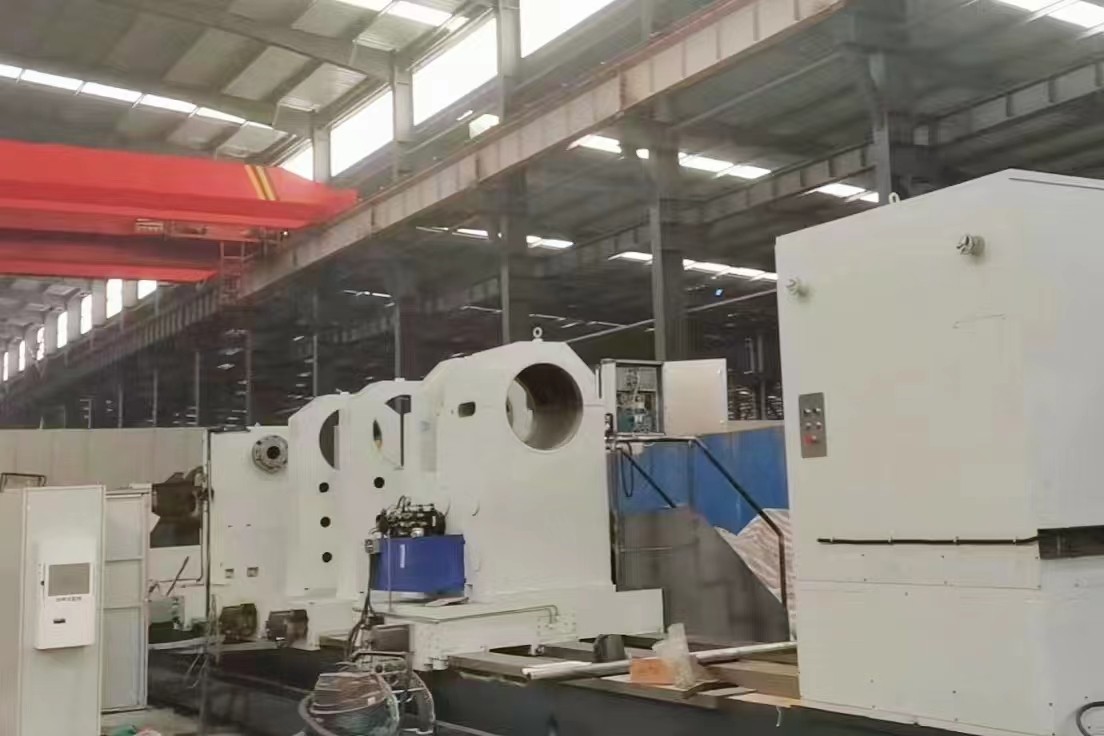

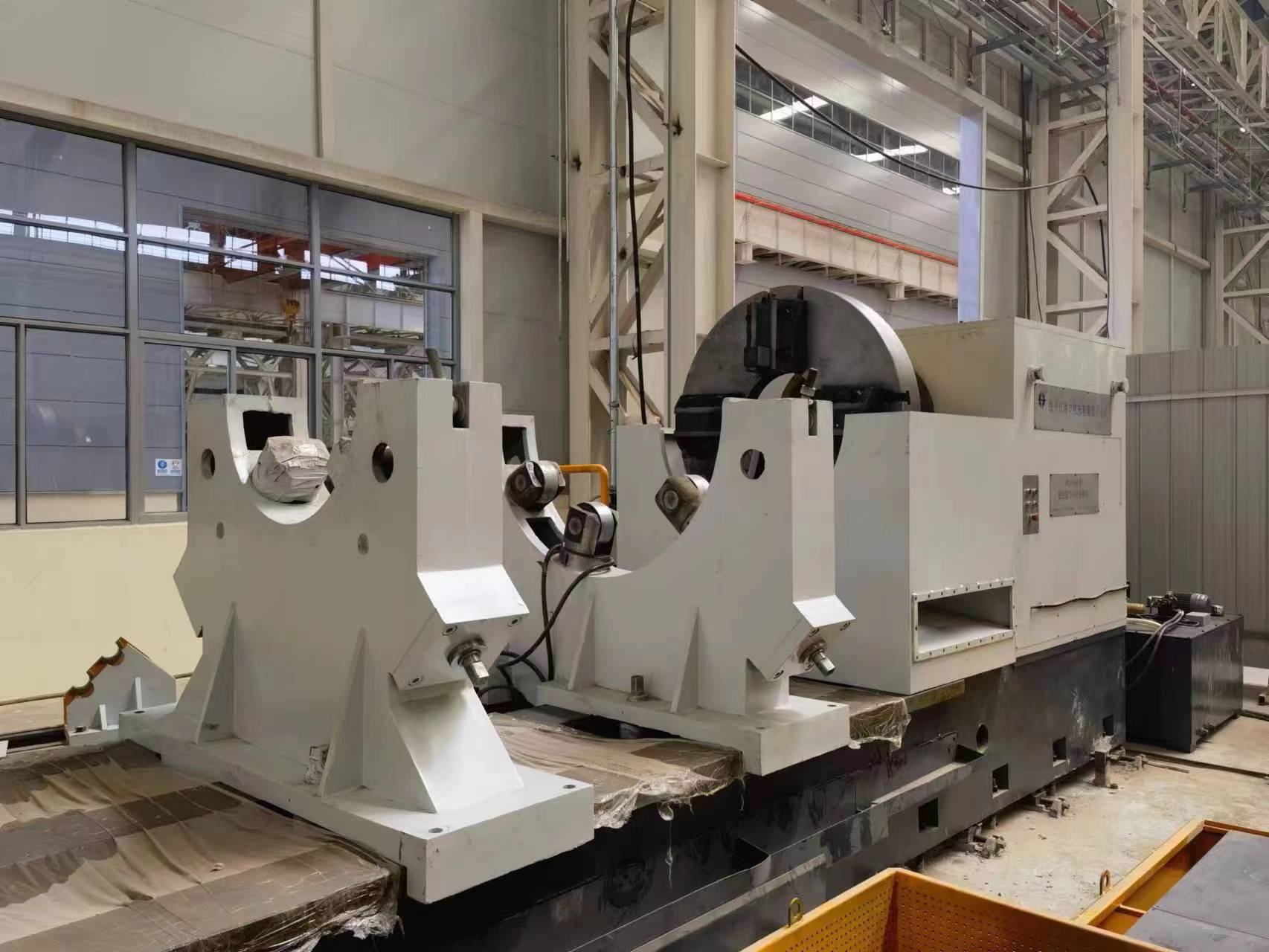

Deep Hole Drilling And Boring Machines T2180/T21100/T21125
1. After years of accumulation, the modified structure is more reasonable and the operation is simple and convenient;
2. The processing diameter range is large and the tool is easy to adjust.
3. The processing length is long, up to 20 meters.
4. Full-featured, suitable for a variety of industries.
5. Good guidance, high straightness, and small exit deflection.
This machine tool can process cylindrical deep hole workpieces, such as machine tool spindle holes, various mechanical hydraulic cylinders, cylinder block cylindrical through holes, blind holes and step holes; the use of special tooling, it can also process special-shaped workpieces.
This machine tool can not only function drilling and boring, but also rolling processing. Because it can be equipped with an elective drill rod box, the following working forms can be selected: 1. The workpiece rotates and the tool rotates at the same time; two The workpiece rotates and the tool does not rotate. There is only reciprocating feed motion; three The workpiece does not rotate, the tool rotates and performs reciprocating feed motion. Thereby improving the processing efficiency, drilling processing technological know-how also has great advantages. The machine device bed guide rail adopts double plane information rail with a width of 1250mm, which has strong rigidity, strong load-bearing capacity and accurate accuracy maintenance. Spindle speed: hydraulic two-speed stepless speed regulation. The feed is driven by an AC servo motor, which can adapt to the desires of various deep hole processing techniques. Hydraulic devices are used to fasten the oil feeder and the working pinnacle to monitor the processing parameters in real time, making it safe and reliable.
This machine is a series product and can also provide quite a number deformation products according to user needs.
Deep hole drilling and boring machines T2180/T21100/T21125 | |||
| SPECIFICATION | T2180 | T21100 | T21125 |
| Maximum diameter of boring | Φ800mm | Φ1000mm | Φ1200mm |
| Hole size | Φ60-Φ150mm | Φ60-Φ150mm | Φ60-Φ150mm |
| Depth of boring | 1000-20000mm | 1000-20000mm | 1000-20000mm |
| Spindle center height | 800mm | 1000mm | 1300mm |
| Clamping diameter (Chuck) | Φ320-Φ1450mm | Φ320-Φ1850mm | Φ320-Φ2350mm |
| Clamping diameter (Steady Rest) | Φ320-Φ950mm | Φ320-Φ950mm | Φ320-Φ950mm |
| Clamping diameter (Console) | Φ320-Φ1250mm | Φ320-Φ1600mm | Φ320-Φ1800mm |
| HEAD STOCK motor power | 55kW DC motor | 75kW DC motor | 75kW DC motor |
| HEAD STOCK speed range | 3-120r/min | 3-120r/min | 3-120r/min |
| Motor power of drill pipe | 45kW | 45kW | 45kW |
| Drill pipe speed range | 16-270r/min 12types | 16-270r/min 12types | 16-270r/min 12types |
| Feed motor power | 7.5kW | 7.5kW | 7.5kW |
| Feed speed range | 0.5-600r/min | 0.5-600r/min | 0.5-600r/min |
| Fast motor power | 11kW | 11kW | 11kW |
| Hydraulic pump motor power | 1.5kW | 1.5kW | 1.5kW |
| Coolant pump motor | 11kW 4sets | 11kW 4sets | 11kW 4sets |
| Rated working pressure of cooling system | 2.5MPa | 2.5MPa | 2.5MPa |
| Cooling system flow | 200-800L/min | 200-800L/min | 200-800L/min |
| System | |||
Application fields
1. Water conservancy engineering cylinder;
2. Construction machinery;
3. Coal mining machinery;
4. Petrochemical machinery;
5. Military industry.
User feedback
1. Product quality is stable.
2. Large processing range.
3. Strong versatility and high value retention rate.
4. Simple maintenance and low use cost.
5. The export deflection is small and the yield is 100%.
