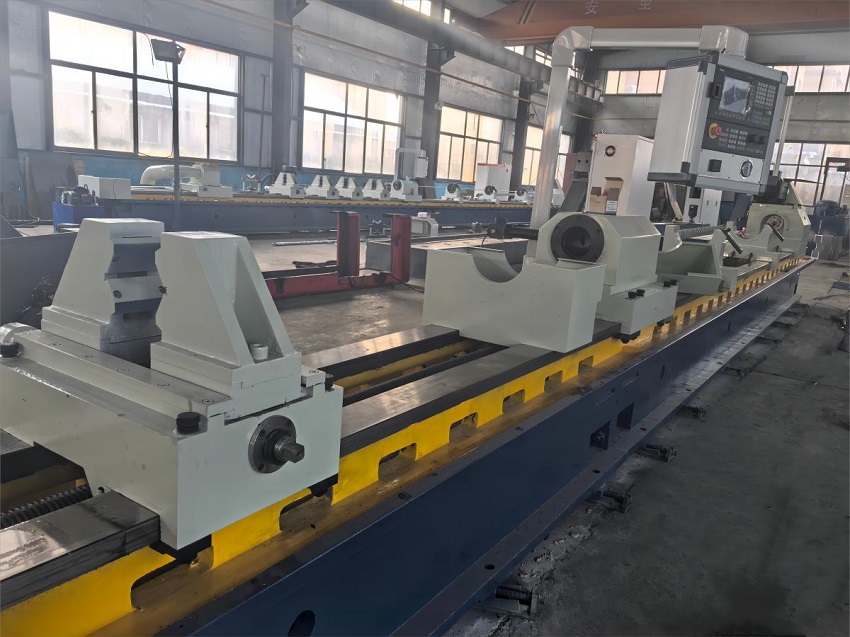

Deep Hole Rolling Machine

1.Superior deep gap machining: Our advanced machine tool is in particular designed for deep hole machining, ensuring accurate drilling with excessive precision and efficiency.

2.Scraping and rolling technique: Utilizing scraping and rolling techniques, our machine tool produces smooth and unique hole surfaces, minimizing the need for additional finishing processes.

3.Wide application: Ideal for industries like aerospace, automotive, and oil and gas, our machine tool is perfect for drilling deep holes in a number of materials.

4.High-quality results: Our deep hole scraping and rolling machine tool produces superb deep holes with superior surface finish, thanks to the controlled material removal and improved accuracy achieved via the scraping and rolling action.

5.Reliable performance and support: With high machining speeds, a wide vary of hole diameters, and our dedicated after-sales service team, our desktop tool guarantees reliable overall performance and customer satisfaction.

Contact Now E-Mail Telephone

Product Details

The Deep Hole Scraping and Rolling Machine Tool is an superior machine specifically designed for deep hole machining. It is significantly used in industries such as aerospace, automotive, and oil and gas where precision deep hole drilling is a essential requirement.

This machine tool is an exceptional solution for accurately drilling deep holes with high precision and efficiency. It employs scraping and rolling techniques, enabling it to achieve exceptionally smooth and precise hole surfaces, thereby lowering the need for additional finishing processes. Capable of reaching high machining speeds and offering a wide vary of hole diameters, the Deep Hole Scraping and Rolling Machine Tool is a reliable and indispensable asset. Its biggest advantage lies in the ability to produce high-quality, deep holes with superior surface finish. This is achieved through its unique scraping and rolling action, which eliminates material in a controlled manner, resulting in better accuracy and surface smoothness. This cutting-edge machine device combines innovation and precision, making it an essential choice for any manufacturing facility aiming for excellence in deep hole machining. With its notable performance, it significantly reduces downtime, improves productivity, and ensures the highest level of efficiency.

Invest in the Deep Hole Scraping and Rolling Machine Tool and trip unparalleled machining precision, superior quality, and increased productivity in your deep gap drilling operations.

Deep Hole Rolling Machine

SPECIFICATION		TGK125	TGK250
Workpiece Dimension	Inside diameter	Φ38-125mm	Φ38-250mm
	Outside diameter	Φ45-150mm	Φ45-300mm
	Machining length	500-Lmm	500-Lmm
Speed	Spindle speed	100-1200r/min Stepless speed regulation	200-1200r/min Hydraulic two gears
	Oil feeder movement	1500mm/min	1500mm/min
	Boring bar movement	0-3000mm/min	0-3000mm/min
Motor Power	Spindle motor	22kW	45kW
Motor Power	Feed servo motor	4.4kW	4.4kW
Cooling System	Tank capacity	5000L	6000L
	Pump flow rate	200、400L/min	200、400、600L/min
	Filtration accuracy	50μm	50μm
Total motor power		65kW	88kW
System		SIEMENS/KND CNC
