CNC Pipe Threading Lathe Machine

1. Double chuck design, convenient for workpiece clamping.

2. The maximum spindle through hole is 430mm, and the processing range is large.

3. Good rigidity and high precision.

4. Suitable for mass production and less dependent on workers.

Contact Now E-Mail Telephone

Product Details

QK series CNC pipe thread lathe is professionally designed according to the requirements of the pipe thread processing industry. This machine can accurately perform professional machining of various threads and can realize the functions of CNC lathes. Equipped with automatic lubrication system with double chuck tightening mechanism. The spindle through hole diameter range is large, the machine tool has high precision, good rigidity and easy operation.

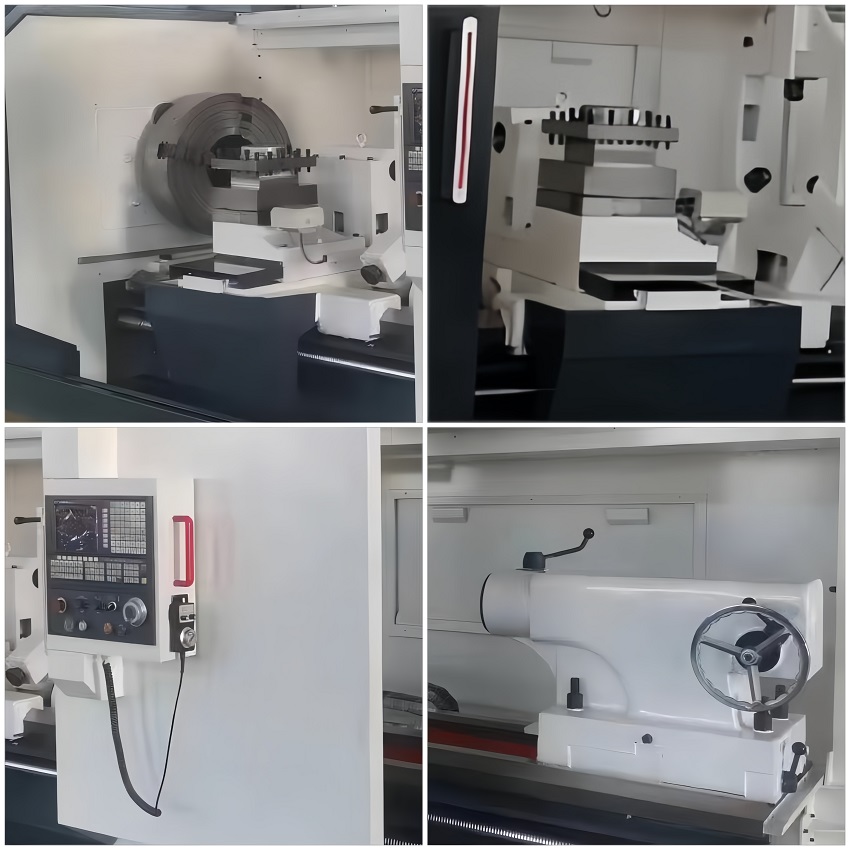

CNC Pipe Threading Lathe Machine

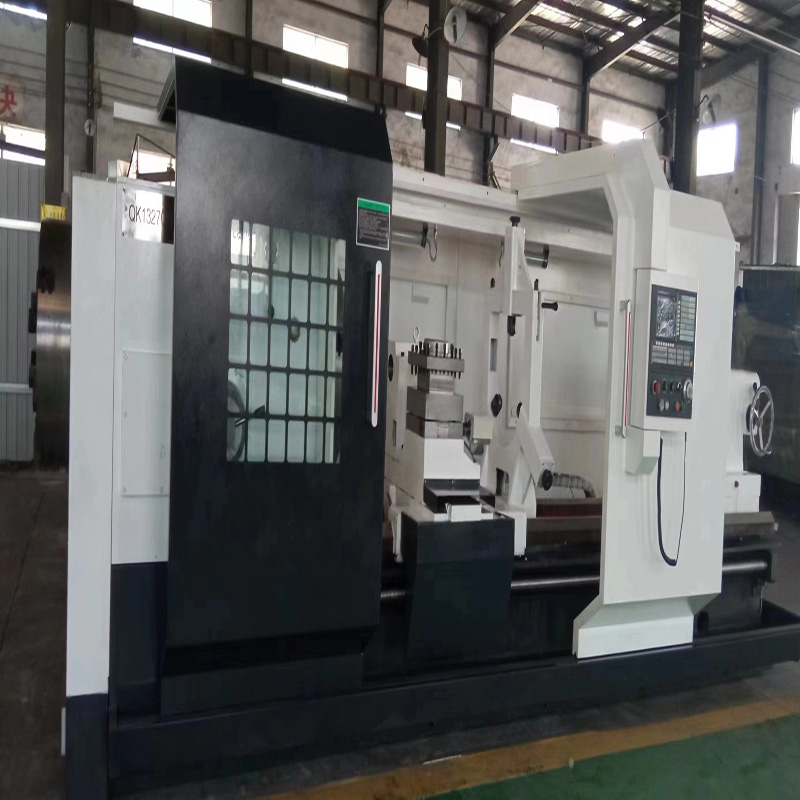

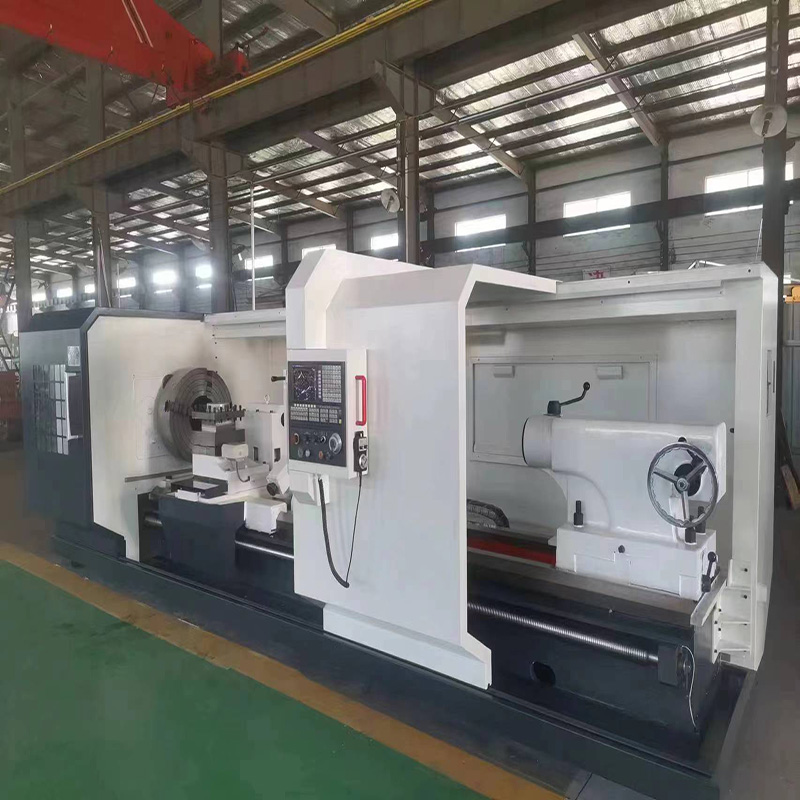

CNC pipe thread lathe

SPECIFICATION	UNIT	QK1313	QK1319	QK1322	QK1327	QK1334	QK1343
The maximum workpiece rotation diameter of the bed	mm	630	630	630	800	900	1000
Maximum tube outer diameter	mm	126	190	220	270	340	426
Maximum workpiece length	mm	1500	1500	1500	1000	1000/1500	1700
Maximum machining length	mm	1300	1300	1300	900	900/1400	1500
Spindle center height	mm	315	315	315	400	450	490
Spindle through-hole diameter	mm	130	200	225	280	350	430
Spindle speed range	r/min	12-600 Stepless	30-450 Stepless	30-400 Stepless	7.7-230 Stepless or 9	5.6-254 Stepless or 12	4.9-180 Stepless or 9
Fast feed speed	m/min	3	3	3	3	3	2.5
Tailstock sleeve travel	mm	250	250	250	250	250	260
Tailstock top taper		5#	5#	5#	6#	6#	6#
Main motor power	kW	11	11	11	15	18.5	22
Cooling motor power	kW	0.125	0.125	0.125	0.125	0.125	0.125
System		SIEMENS, KND CNC, GSK CNC
