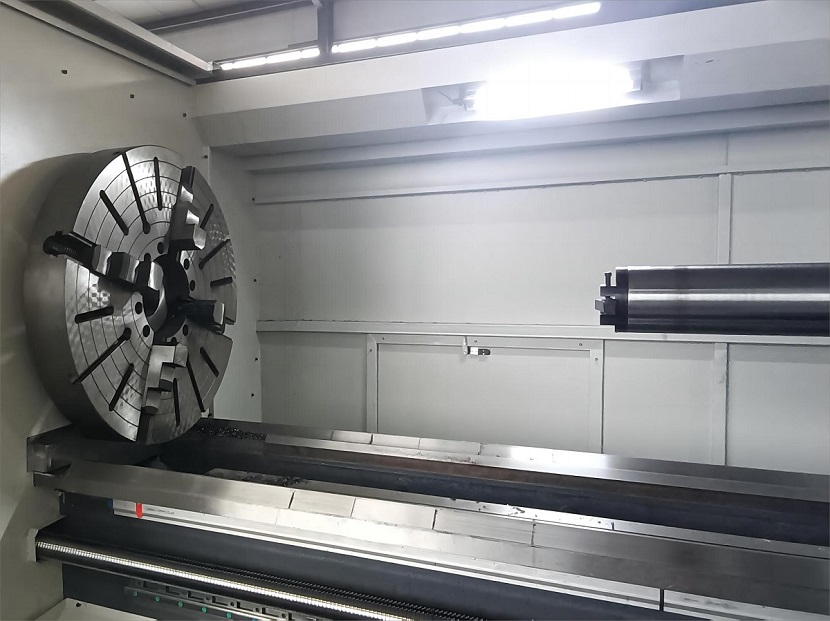

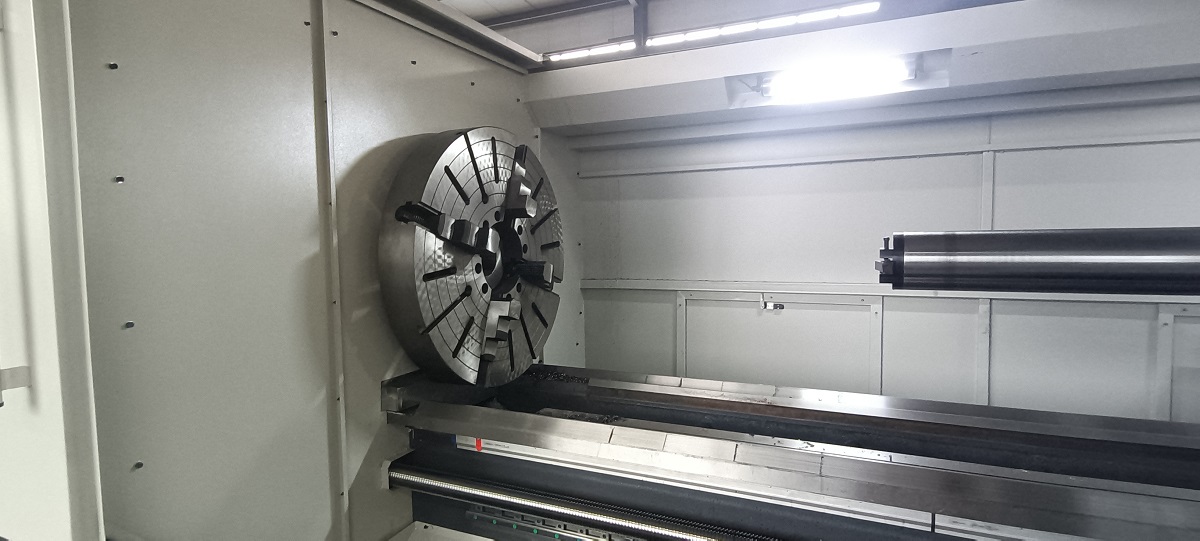

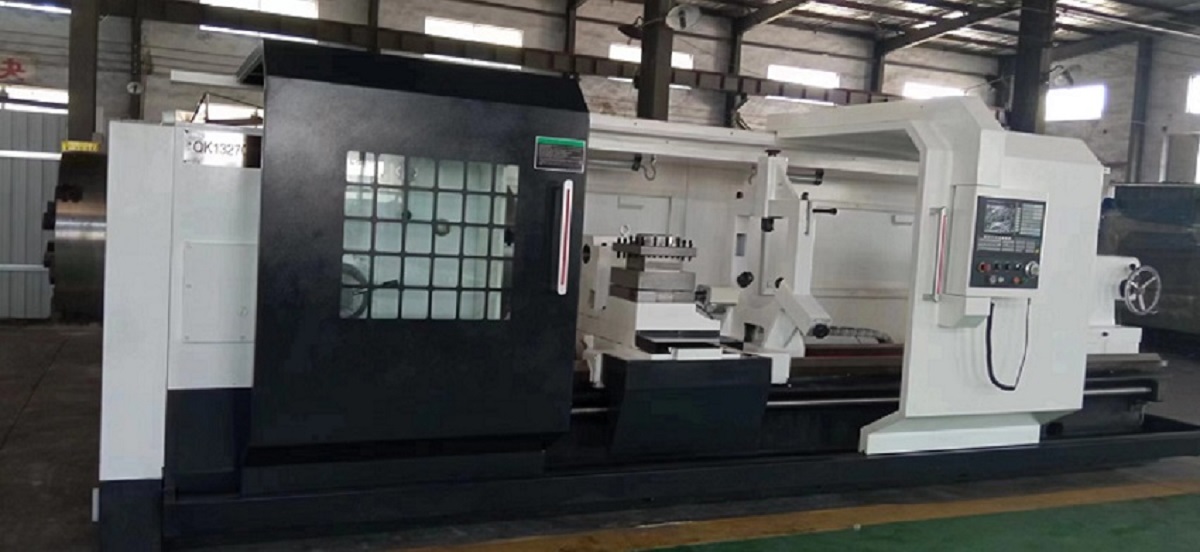

CNC Heavy Duty Lathe CK61125/140

1. The load-bearing shape has been optimized and designed to have reliable load-bearing and stable performance.

2. Good rigidity and excessive precision.

3. High market penetration, easy maintenance and long carrier life.

4. It can bear a maximum load of 100 t and is suitable for a variety of industries.

5. Suitable for mass production and much less dependent on workers.

Contact Now E-Mail Telephone

Product Details

The predominant structure of the desktop tool:
CK611 sequence machine is a large horizontal flat mattress CNC lathe, full digital AC servo system. The predominant power D, L, B, H type is computerized two-speed stepless transmission, the important motor is AC spindle motor, E, N form is guide four-speed stepless variable speed, the fundamental motor is DC motor, and two linkage manipulate shafts. The Z axis and X axis of the computer gadget with a core distance of 1-6M use ball screw pair plus AC servo motor to recognise longitudinal and lateral movement; The Z axis of the computer device with a center distance of extra than 7M adopts rack and pinion plus grating ruler, and the X axis adopts ball screw pair plus AC servo motor to obtain longitudinal and lateral movement, which has properly positioning and repeated positioning accuracy.

CNC Heavy Duty Lathe CK61125/140

SPECIFICATION		UNIT	CK61125H/N	CK61140H/N
Capacity	The maximum load capacity of the two tops	kg	15000/20000
	Bed width	mm	1100
	Maximum swivel diameter of the bed	mm	1290/1300	1440/1500
	Maximum swing diameter of the tool holder	mm	840/850	990/1050
	Maximum workpiece length	mm	1000-12000
Spindle	Front bearing diameter	mm	240/280
	Through hole diameter	mm	100
	Cone hole		140# metric system
	Number of speed stages		Manual two-gear/manual four-gear, stepless speed regulation in gear
	Speed range	r/min	3-300/2-200
Feed	Main motor power	kW	37/55
	Feed system		SIEMENS, KND CNC, GSK CNC
	Longitudinal servo motor torque	N.m	36/48or30/40
	Transverse servo motor torque	N.m	27/36or22/40
	Cutter holder cross-section		55X55/60x60
	Number of tool holder stations		Vertical 4 stations
	Cutterhead repeat positioning accuracy	mm	0.01
	Longitudinal fast forward speed	mm/min	6000
	Lateral fast forward speed	mm/min	4000
	Longitudinal feed speed	mm/min	1-2000
	Transverse feed speed	mm/min	1-2000
Tailstock	Sleeve diameter	mm	260/280
	Sleeve cone hole		80# metric system
	Sleeve travel	mm	300
