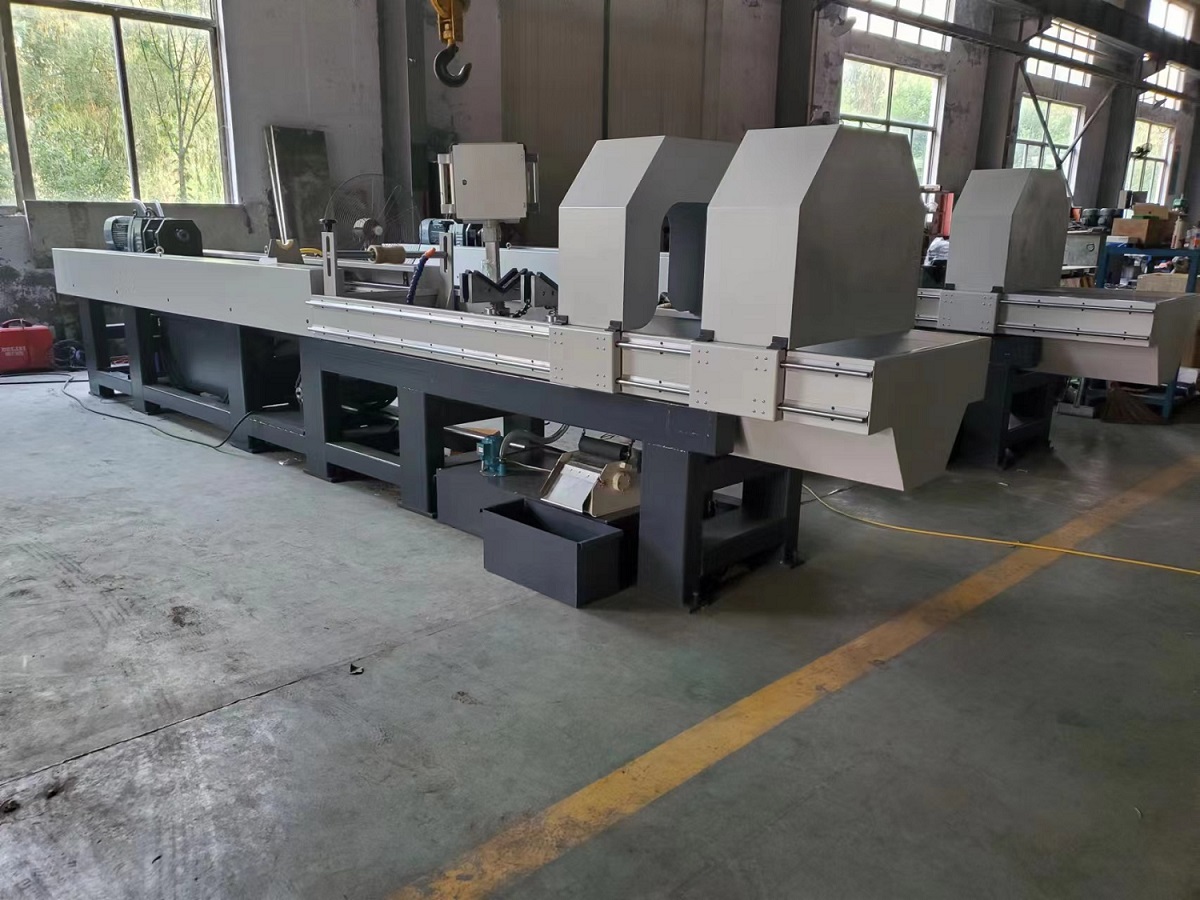

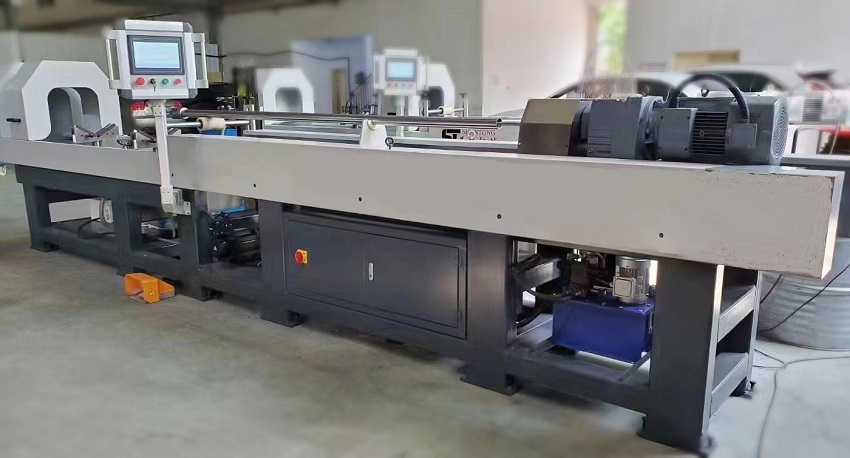

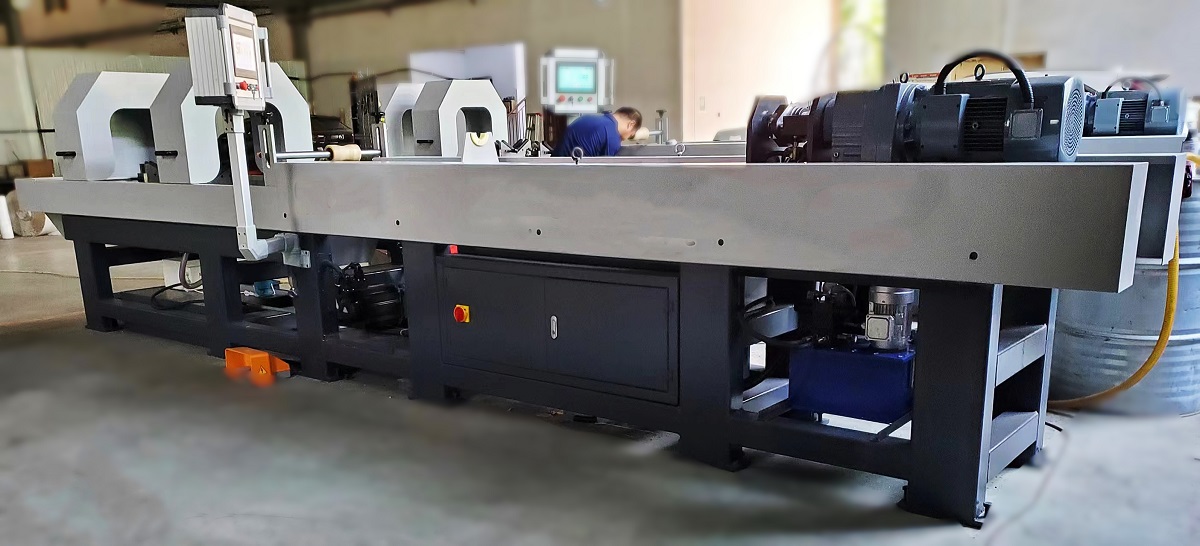

External Honing Machine
1. Fast and efficient.
2. Suitable for various materials, especially high hardness processing after quenching.
3. High surface roughness.
4. Achieve automatic measurement and high yield rate.
5. The tool has a large adjustment range and is easy to operate.
This machine tool changes the traditional process method of deep hole machining multi-process and effectively improves productivity. The parts to be honed are made of cast iron and various types of steel, and the workpiece is qualified and hardened.
The cooling system of this machine tool adopts three-stage filtration, which fully guarantees the cleanliness of the coolant. The control of this machine tool is concentrated in the electrical control center, which is convenient to operate, safe and reliable.
This machine tool can not only undertake mass production, but also meet the needs of single small batch workpiece processing, and is an ideal equipment for deep hole workpiece finishing.
Deep Hole Honing Machine is used to repair hydraulic cylinders or other tubes to get good surface roughness, our honing machine can hone holes from 25mm to 800m and depth from 500mm to 200000mm with various models available. The honing head expansion and contraction is controlled by servo motor, which can realize partial honing and complete honing. Industrial tube honing machines have good roundness, straightness and surface detail.
SPECIFICATION | 2M2125A | 2M2135A | 2M2150A |
| Honing diameter range | Φ40-Φ250mm | Φ40-Φ350mm | Φ80-Φ500mm |
| Max depth of hole honed | 12000mm | 12000mm | 12000mm |
| Center-height | 350mm | 350mm | 450mm |
| Clamping workpiece diameter range | Φ60-Φ350mm | Φ60-Φ420mm | Φ100-Φ650mm |
| Grinding rod spindle speed range | 25-250r/min 2 gears stepless | 25-250r/min 2 gears stepless | 12-125r/min 2 gears stepless |
| Grinding rod reciprocating speed range | 3-20m/min | 3-20m/min | 3-20m/min |
| Motor power of grinding rod | 7.5kW（Variable frequency motor） | 7.5kW（Variable frequency motor） | 7.5kW（Variable frequency motor） |
| Grinding head expansion hydraulic system oil pump flow | 12.5L/min | 12.5L/min | 12.5L/min |
| Maximum working pressure of oil pump in hydraulic system of grinding head expansion | 4MPa | 4MPa | 4MPa |
| Cooling pump flow | 100L/min | 100L/min | 100L/min |
| Cooling tank volume | 950L | 950L | 950L |
| Grinding head expansion hydraulic system oil pump motor power | 1.1kW | 1.1kW | 1.1kW |
| Cooling pump motor power | 1.5kW | 1.5kW | 1.5kW |
| Reciprocating motor power | 5.5kW | 5.5kW | 7.5kW |
Application fields
1. Water conservancy engineering cylinder;
2. Construction machinery;
3. Coal mining machinery;
4. Petrochemical machinery;
5. Military industry.
User feedback
1. Product quality is stable.
2. Large processing range and easy operation.
3. Simple maintenance and low use cost.
4. The aperture is automatically measured and the yield is 100%.
5. Suitable for processing high-hardness workpieces.
