Specialised Tool for Drilling and Enlarging Internal Holes

1. High precision deep gap drilling and boring: This CNC deep hole machine is designed for processing cylindrical deep hole components with exceptional precision. Suitable for both drilling and boring operations.

2. Efficient chip removal system: Utilizing the indoors chip removal method (BTA), this machine ensures easy chip discharge and effective heat dissipation during drilling. The chips are routinely directed to the chip removal bucket or hopper, improving productivity and extending device life.

3. Durable construction: The machine's bed guide rail is made of quenched rectangular rail, providing superb wear resistance. The feed screw is positioned in the middle of the rail, making sure stability and accuracy during operation.

4. Adjustable and reliable oil dispenser: Equipped with a servo motor, the oil dispenser tightens the workpiece with adjustable pressure, providing optimal machining conditions. The high concentricity between the oil dispenser spindle and the machine spindle ensures precise and consistent results.

5. Exceptional performance and after-sales support: This deep gap machine delivers outstanding overall performance and longevity. Our dedicated after-sales team provides complete support and assistance to ensure your persevered satisfaction.

Contact Now E-Mail Telephone

Product Details

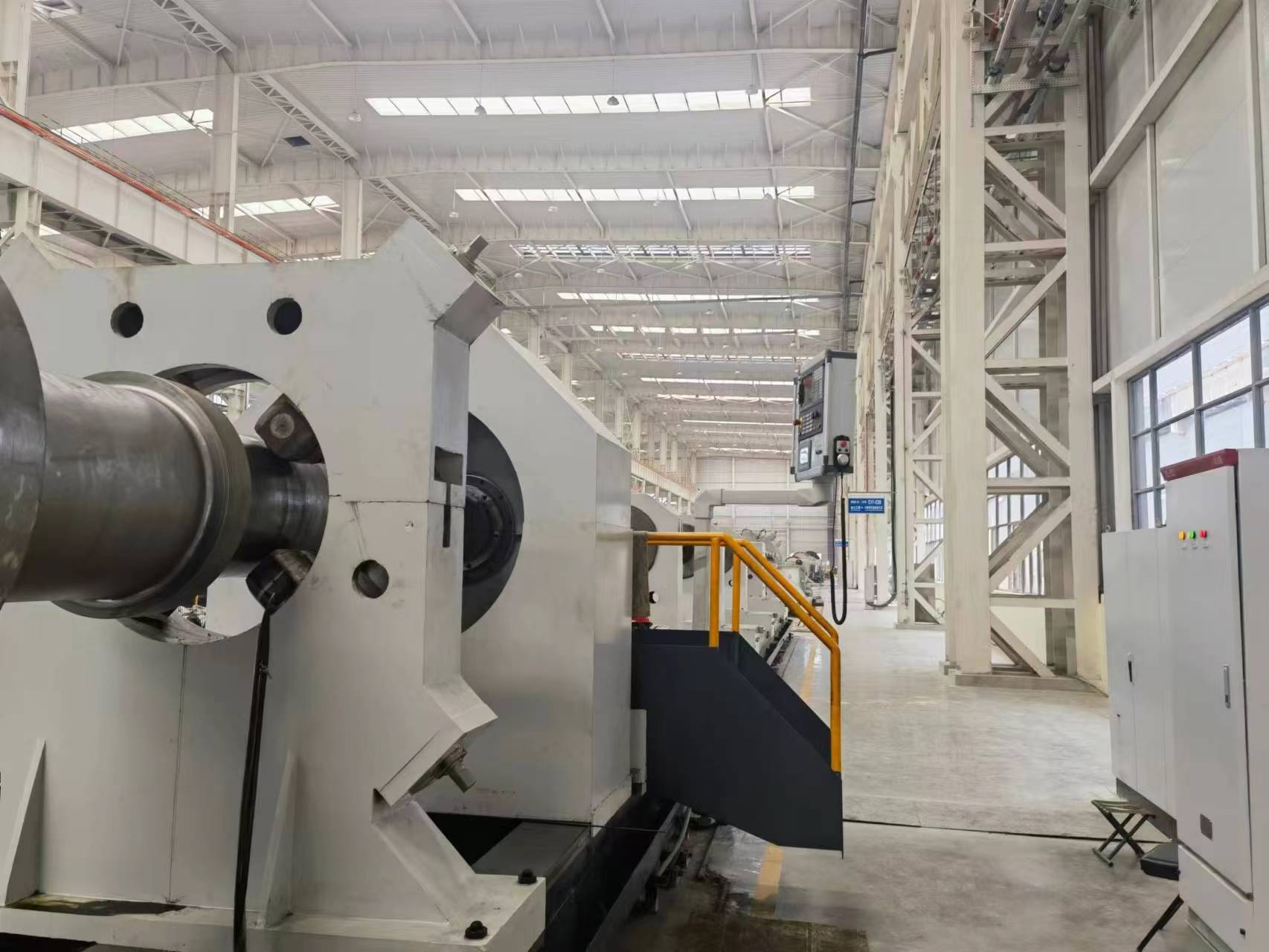

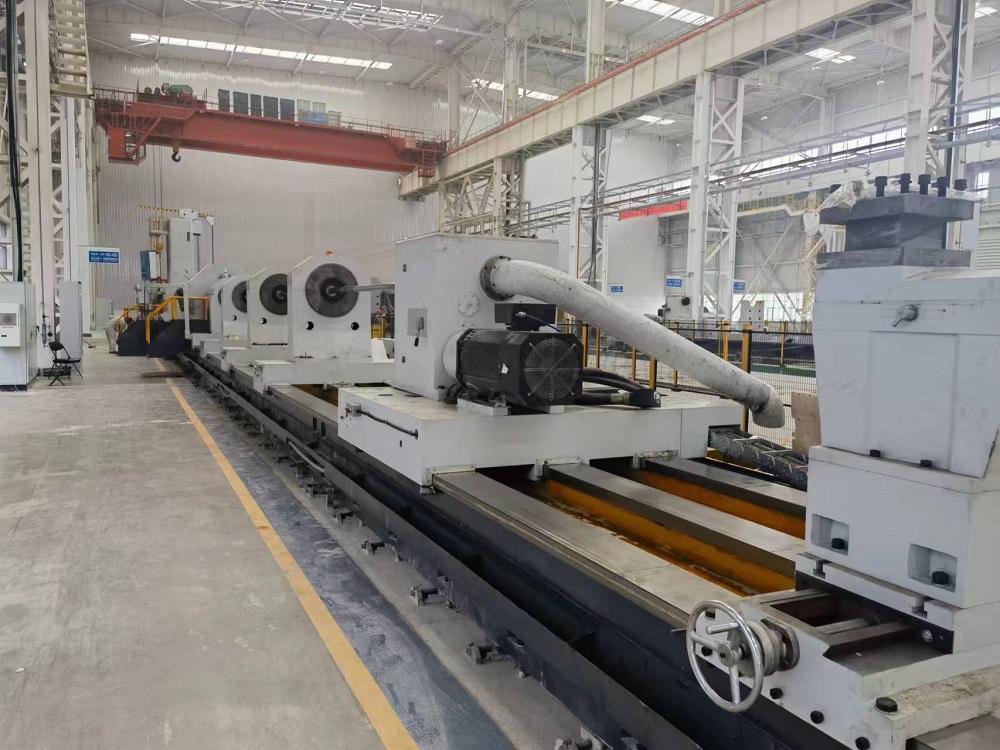

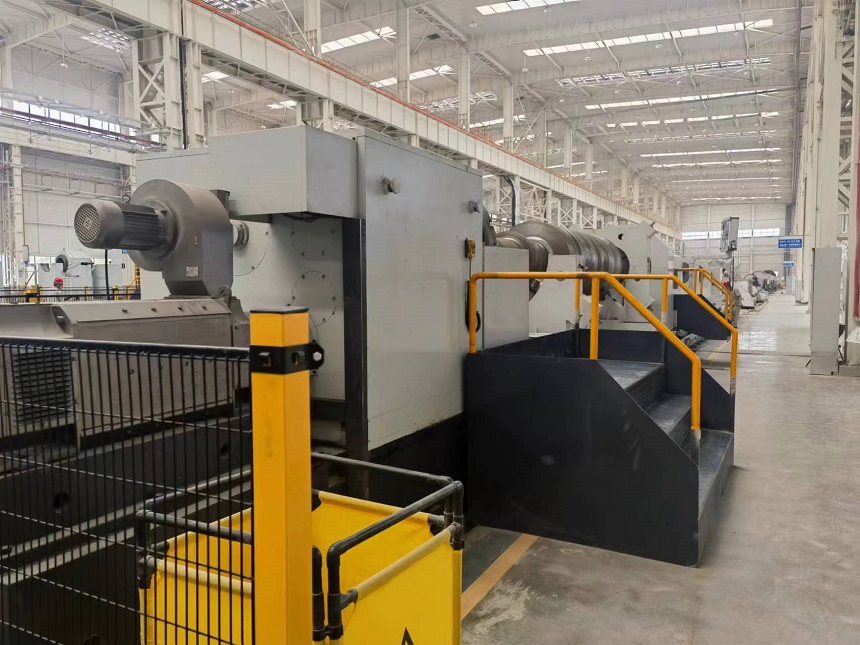

The Deep Hole Machine is a specialised machine tool designed for drilling and boring cylindrical deep hole parts. It is perfect for precision machining of deep hole workpieces. The machine features superior drilling techniques, including the internal chip removal technique known as the BTA method. With this method, oil is supplied through an oil dispenser, making sure efficient chip removal from the inside of the drill pipe to a chip elimination bucket located at the rear of the machine bed.

In addition to drilling, the machine is additionally capable of boring operations. During boring, the end of the boring bar is used to provide oil, and the chips are discharged thru the cutting area to a chip discharge hopper situated at the head of the computer bed. This ensures smooth and reliable chip removal.

The machine machine bed guide rail consists of a durable rectangular information rail that has been quenched for enhanced wear resistance. The feed screw is skillfully installed in the center of the guide rail, enabling precise and accurate movement. The oil dispenser is outfitted with a servo motor, allowing for adjustable pressure to securely tighten the workpiece. Its protection device ensures safe and reliable operation. Furthermore, the oil dispenser spindle and the machine device spindle exhibit high concentricity, guaranteeing top rotational performance.

This CNC Deep Hole Machine is a remarkable and professional-grade tool, perfect for industries requiring precise and efficient drilling and boring operations. Whether you are working with deep gap parts or need to perform the BTA method, this machine is engineered to deliver optimal results.

Specialised Tool for Drilling and Enlarging Internal Holes

SPECIFICATION

SPECIFICATION	T2180	T21100	T21125
Maximum diameter of boring	Φ800mm	Φ1000mm	Φ1200mm
Hole size	Φ60-Φ150mm	Φ60-Φ150mm	Φ60-Φ150mm
Depth of boring	1000-20000mm	1000-20000mm	1000-20000mm
Spindle center height	800mm	1000mm	1300mm
Clamping diameter (Chuck)	Φ320-Φ1450mm	Φ320-Φ1850mm	Φ320-Φ2350mm
Clamping diameter (Steady Rest)	Φ320-Φ950mm	Φ320-Φ950mm	Φ320-Φ950mm
Clamping diameter (Console)	Φ320-Φ1250mm	Φ320-Φ1600mm	Φ320-Φ1800mm
HEAD STOCK motor power	55kW DC motor	75kW DC motor	75kW DC motor
HEAD STOCK speed range	3-120r/min	3-120r/min	3-120r/min
Motor power of drill pipe	45kW	45kW	45kW
Drill pipe speed range	16-270r/min 12types	16-270r/min 12types	16-270r/min 12types
Feed motor power	7.5kW	7.5kW	7.5kW
Feed speed range	0.5-600r/min	0.5-600r/min	0.5-600r/min
Fast motor power	11kW	11kW	11kW
Hydraulic pump motor power	1.5kW	1.5kW	1.5kW
Coolant pump motor	11kW 4sets	11kW 4sets	11kW 4sets
Rated working pressure of cooling system	2.5MPa	2.5MPa	2.5MPa
Cooling system flow	200-800L/min	200-800L/min	200-800L/min
System	SIEMENS,Delta, KND CNC, GSK CNC
