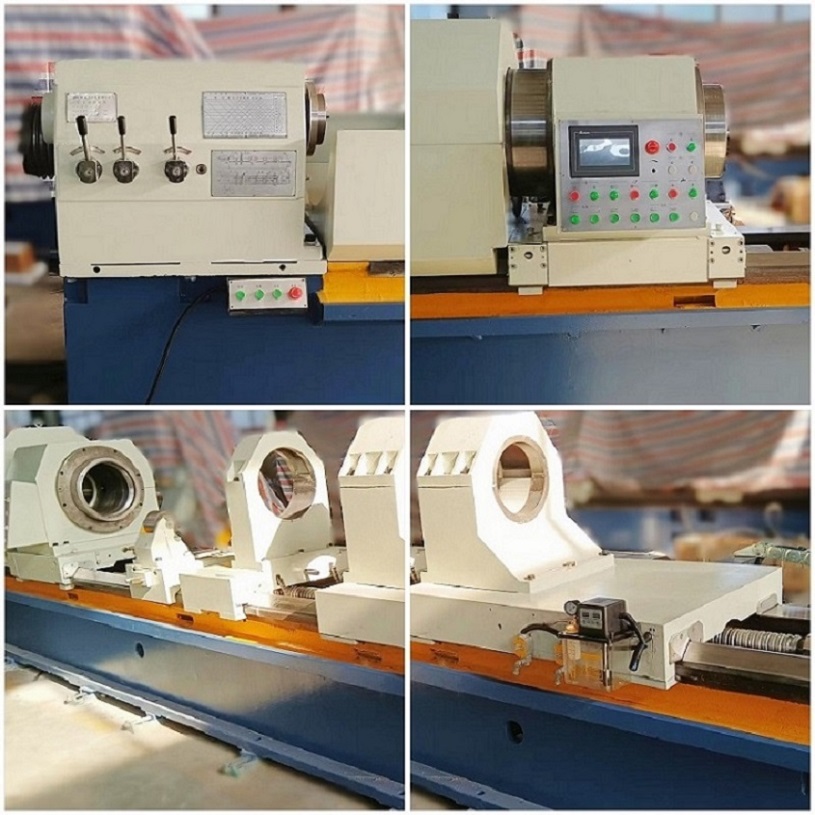

Highly Efficient Deep Hole Drilling and Boring Machine

1. Superior Precision: Our Deep Hole Drilling and Boring Machine is specifically designed to process cylindrical deep hole workpieces with utmost precision and accuracy, ensuring exceptional quality in every operation.

2. Versatile Functionality: Equipped with advanced features, this machine seamlessly performs a wide range of operations including drilling, boring, expanding, and rolling processing of inner holes. It effortlessly handles not only through holes but also blind holes and step holes, providing incredible versatility.

3. Durable Construction: Our Deep Hole Drilling and Boring Machine is constructed with high-quality materials, guaranteeing long-term durability and reliability. It is designed to withstand the rigors of heavy-duty industrial applications.

4. Exceptional After-Sales Support: We provide excellent after-sales support, ensuring that our customers receive prompt assistance and guidance. Our dedicated team of experts is always ready to address any queries or concerns, ensuring a seamless user experience.

Contact Now E-Mail Telephone

Product Details

Our highly efficient Deep Hole Drilling and Boring Machine, expertly designed to handle cylindrical deep hole workpieces with unparalleled precision and accuracy. Boasting cutting-edge technology and advanced features, this machine effortlessly performs a wide range of operations, including drilling, boring, expanding, and rolling processing of inner holes. With its versatility, it excels not only in processing through holes but also in efficiently handling blind holes and step holes.

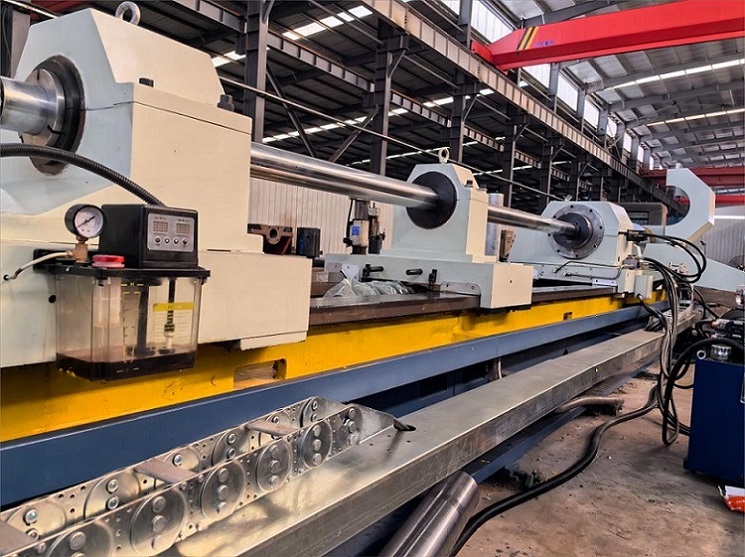

During the machining process, the workpiece spins while the tool steadily feeds, guaranteeing a seamless and accurate cutting experience. To ensure optimal performance, our machine incorporates a specialized cutting fluid into the reducing area. This cutting fluid serves as a powerful coolant, lubricant, and chip remover, resulting in a remarkably smoother and faster operation.

When it comes to drilling, our machine takes advantage of the oil dispenser feature. This allows for precise control and distribution of cutting fluid, enabling the perfect balance of cooling and lubrication for a superior drilling experience. With this advanced functionality, you can achieve exceptional hole quality and remarkable surface finishes.

Investing in our Deep Hole Drilling and Boring Machine means equipping your business with a high-performance tool that ensures remarkable efficiency, accuracy, and versatility. It is an essential addition to any workshop or manufacturing facility that deals with deep hole machining. Trust in our expertise and experience the exceptional results that our machine brings to your operations.

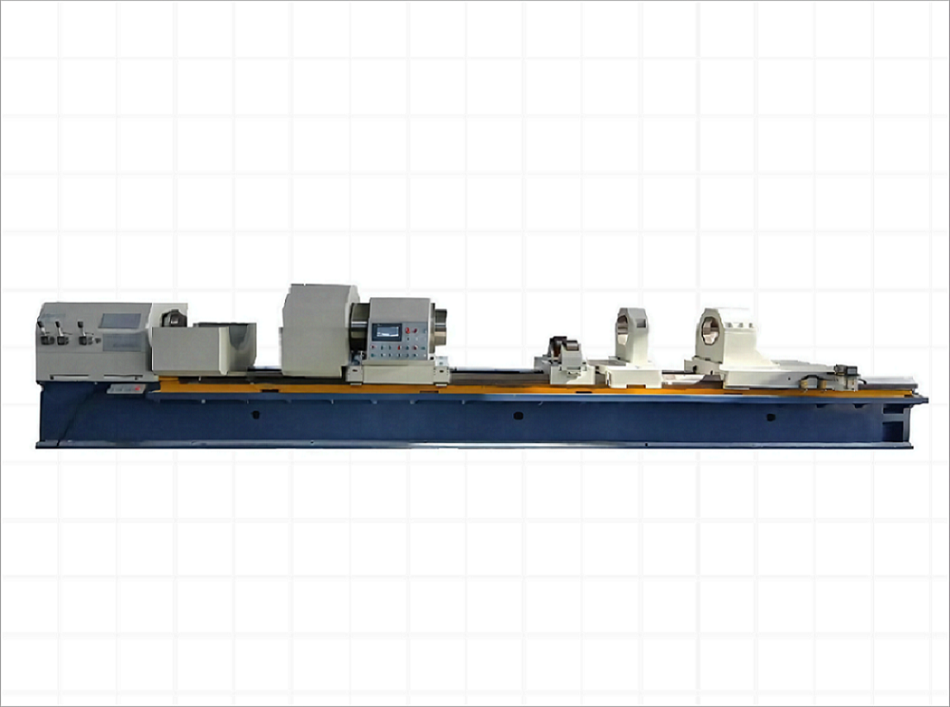

Highly Efficient Deep Hole Drilling and Boring Machine

Specification

SPECIFICATION		TK2120	TK2125	TK2135
Capacity	Maximum diameter of boring	200mm	250mm	350mm
	Hole size	Φ40-Φ100mm	Φ40-100mm	Φ40-Φ120mm
	Depth of boring	1000-12000mm	1000-12000mm	1000-12000mm
	Clamping diameter	60-300mm	60-330mm	220-450mm
Spindle	Center height	350mm	350mm	450mm
	Headstock spindle aperture	Φ75mm	Φ75mm	Φ75mm
	Taper of spindle	Φ85mm 1:20	Φ85mm 1:20	Φ85mm 1:20
	Rang of spindle speed	30-500r/min 12 types	30-500r/min 12 types	30-500r/min 12 types
	Spindle speed range of drill pipe	30-500r/min 12 types	30-500r/min 12 types	30-500r/min 12 types
Feed	Velocity range (stepless)	5-1000mm/min	5-1000mm/min	5-1000mm/min
Feed	Drag board fast moving speed	2m/min	2m/min	2m/min
Motor	Main motor power	30kw	30kw	30kw
	Hydraulic pump motor power	1.5kw	1.5kw	1.5kw
	Feed motor power	4.4kw AC servo motor	4.4kw AC servo motor	4.4kw AC servo motor
	Coolant pump motor	5.5kw（2sets）	5.5kw（2sets）	5.5kw（3sets）
	Motor power of drill pipe	22kw 6 poles	22kw 6 poles	22kw 6 poles
Other	Rated working pressure of cooling system	2.5MPa	2.5MPa	2.5MPa
	Cooling system flow	200、400L/min	200、400L/min	200、400、600L/min
	Rated working pressure of hydraulic system	6.3Mpa	6.3Mpa	6.3Mpa
	Maximum axial force on the oil feeder	63KN	63KN	63KN
	Maximum jacking force of oil feeder on workpiece	20KN	20KN	20KN
System	Delta, SIEMENS, KND CNC, GSK CNC
