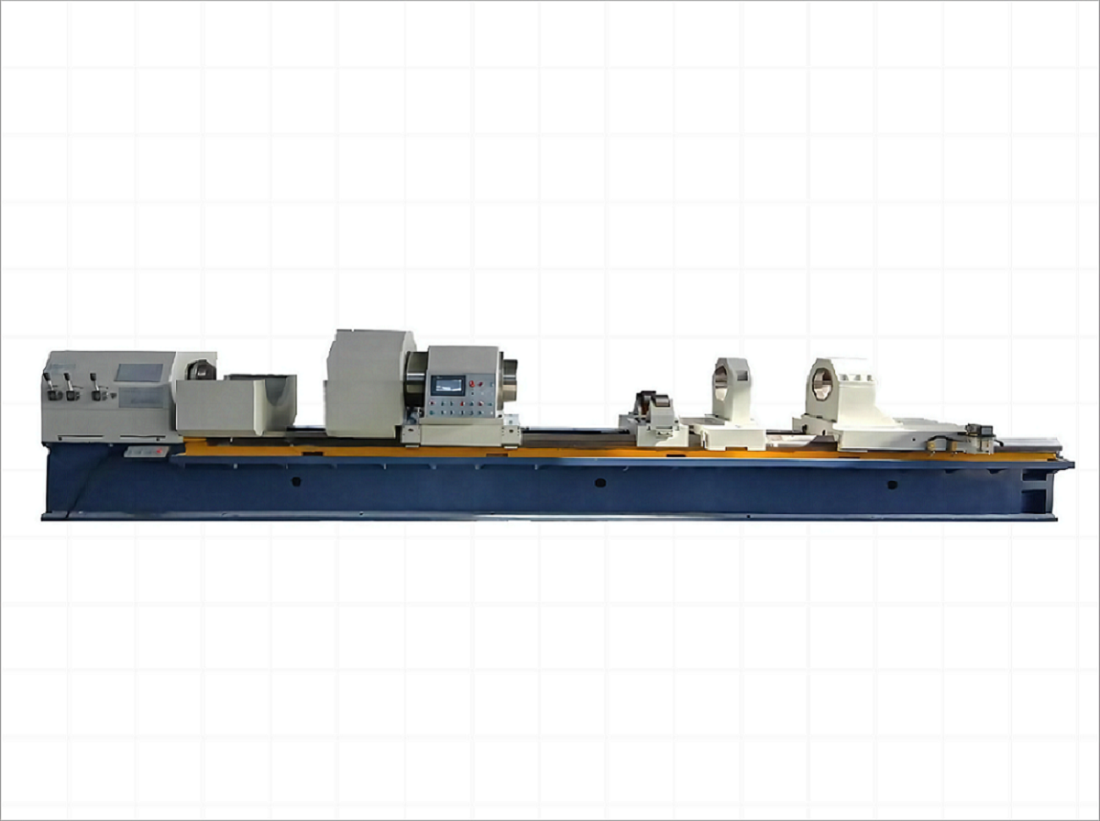

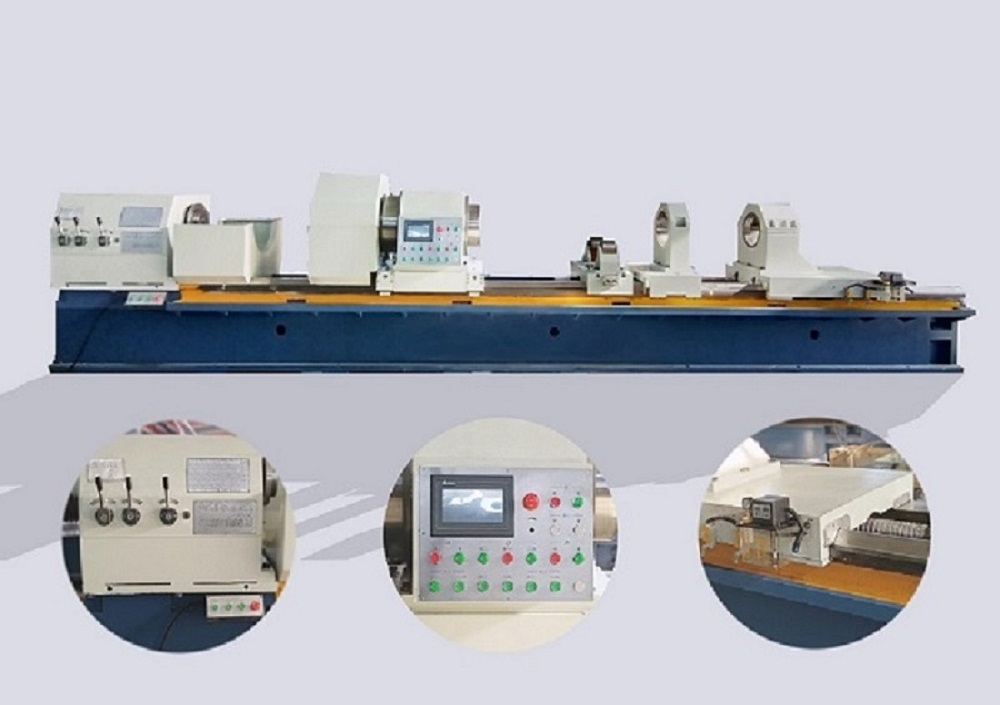

Deep Hole Boring Machines-T2135

This machine tool is specialised in processing cylindrical deep gap workpieces. It can whole the drilling, boring, growing and rolling processing of internal holes. In addition to processing by way of holes, it can additionally method blind holes and step holes. During processing, the workpiece rotates, the system (rotatable) feeds for cutting, and the reducing fluid enters the slicing region via the oil dispenser or the tail of the boring bar, cools, lubricates the cutting, and takes away the chips. When drilling, the oil dispenser is used to furnish reducing fluid, and chips are discharged in the BTA. When boring, the oil dispenser or boring bar is used to furnish reducing fluid, and the lowering fluid and chips are discharged beforehand (head end).

The deep gap drilling and boring computing device can be geared up with an optionally reachable drill rod field to recognize double rotation of the workpiece and the tool, or single movement, adapting to the desires of processing science in special situations. It can entirely feature the workpiece whilst reducing the transmission pace of the workpiece (not appropriate for high-speed rotating workpieces). Ensure processing effectivity and processing quality.

The most important tools of this machine can flexibly pick the processing approach in accordance to actual needs, and has a extensive fluctuate of applications.

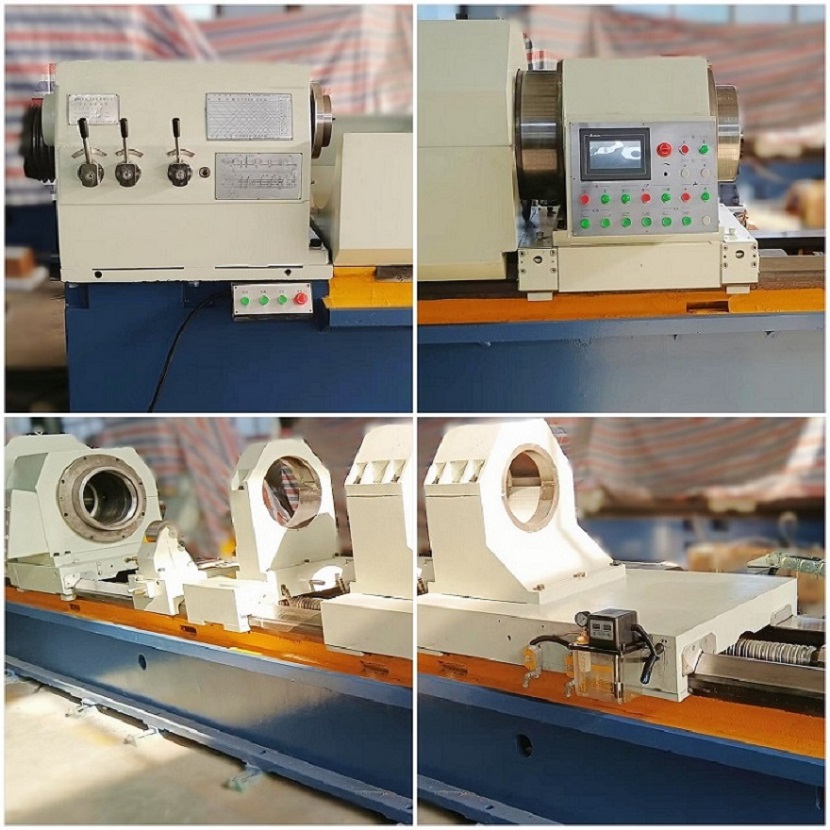

The machine tool want to have a mattress body, a headstock, a drill rod field (optional), a chuck body, a feed pallet, an oil dispenser, a cooling part, a chip elimination device, a workpiece core frame, a hydraulic system, a drilling and boring rod bracket, and a motor. device, electrical machine components.
