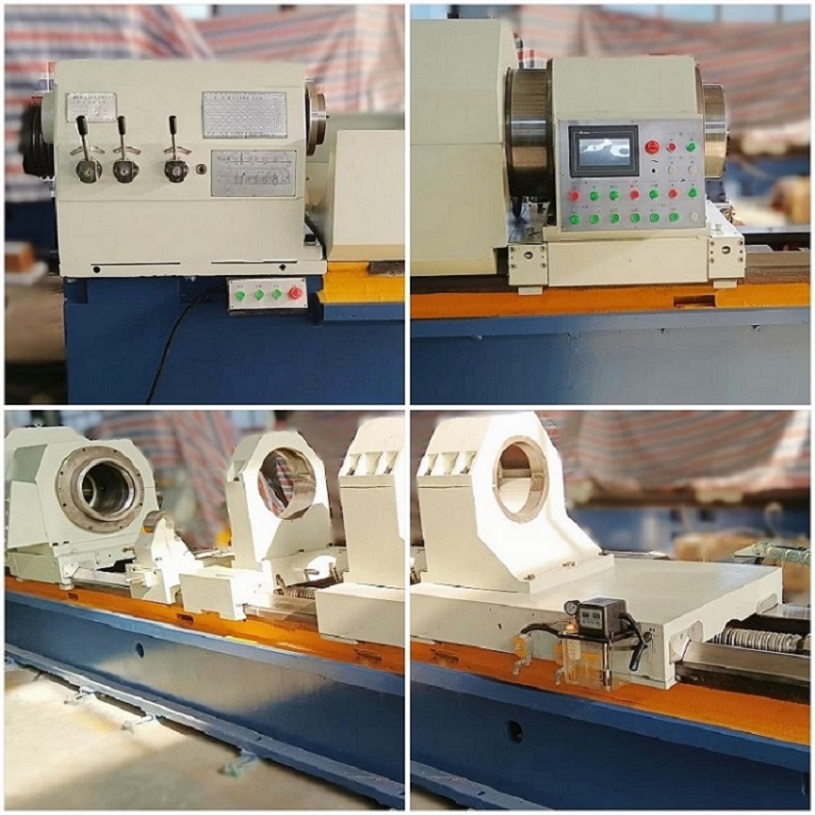

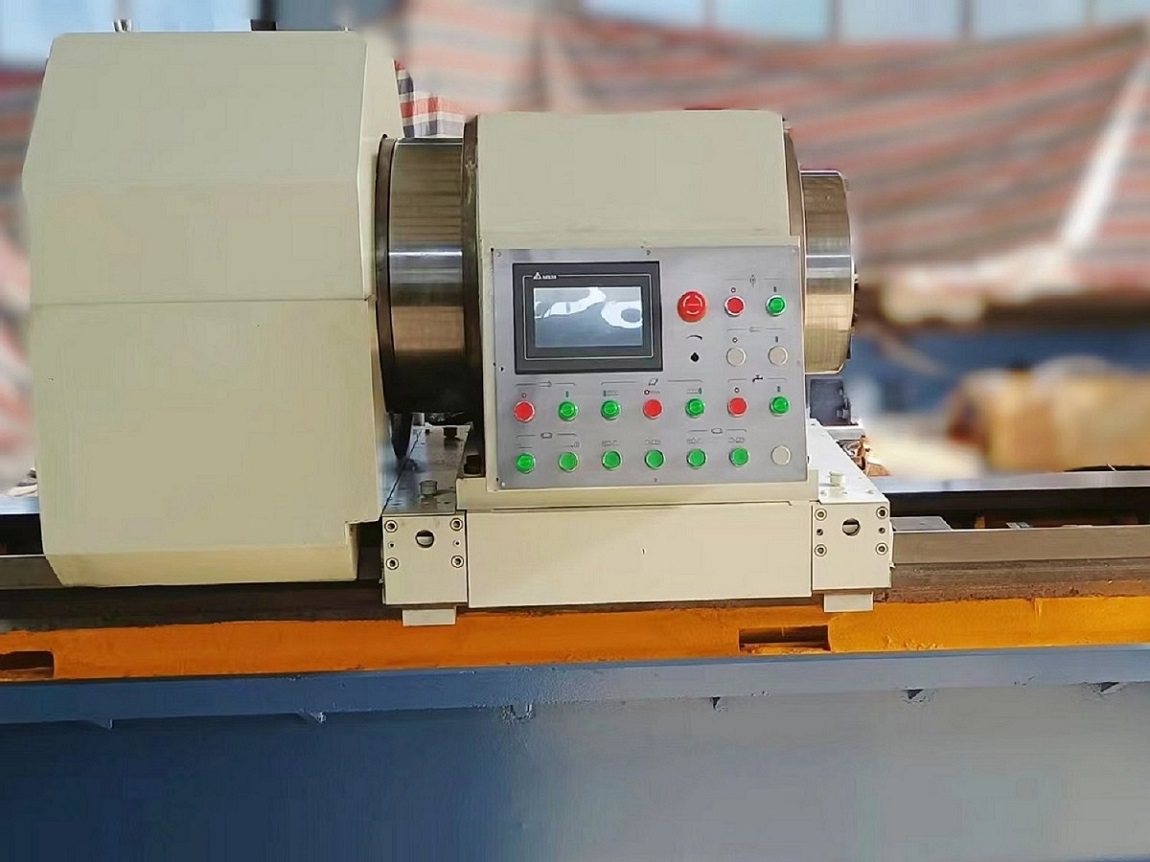

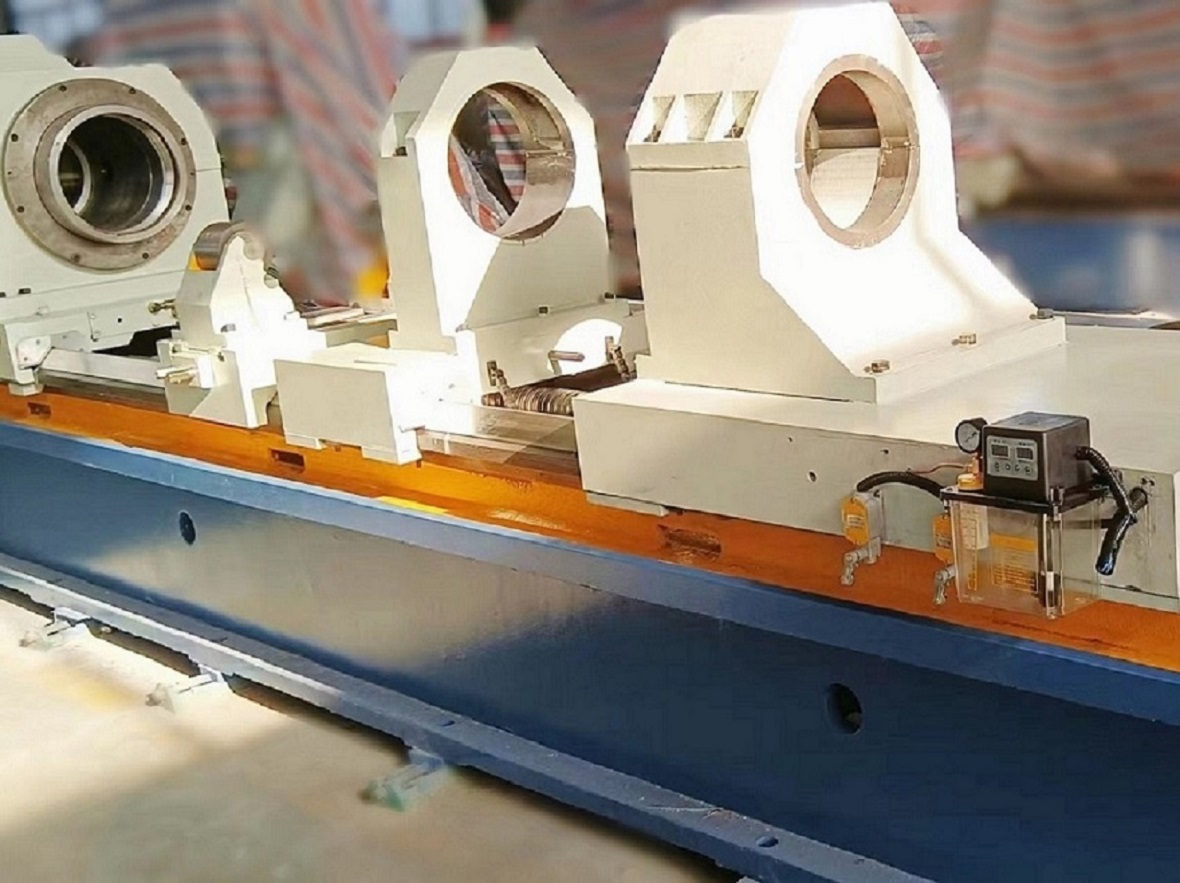

Cylinder Processing Equipment TK2120-35

This machine tool is specialized in processing cylindrical deep hole workpieces. It can whole the drilling, boring, expanding and rolling processing of inner holes. In addition to processing through holes, it can in addition process blind holes and step holes. During processing, the workpiece rotates, the tool (rotatable) feeds for cutting, and the cutting fluid enters the reducing area through the oil dispenser or the tail of the boring bar, cools, lubricates the cutting, and takes away the chips. When drilling, the oil dispenser is used to supply lowering fluid, and chips are discharged in the BTA. When boring, the oil dispenser or boring bar is used to supply cutting fluid, and the cutting fluid and chips are discharged until now (head end).

The deep hole drilling and boring machine can be equipped with an optionally on hand drill rod container to realize double rotation of the workpiece and the tool, or single movement, adapting to the needs of processing technological know-how in distinctive situations. It can fully operate the workpiece while lowering the transmission speed of the workpiece (not suitable for high-speed rotating workpieces). Ensure processing effectivity and processing quality.

The important tools of this machine can flexibly pick the processing approach in accordance to actual needs, and has a broad vary of applications.

The machine tool need to have a mattress body, a headstock, a drill rod box (optional), a chuck body, a feed pallet, an oil dispenser, a cooling part, a chip elimination device, a workpiece middle frame, a hydraulic system, a drilling and boring rod bracket, and a motor. device, electrical gadget components.
