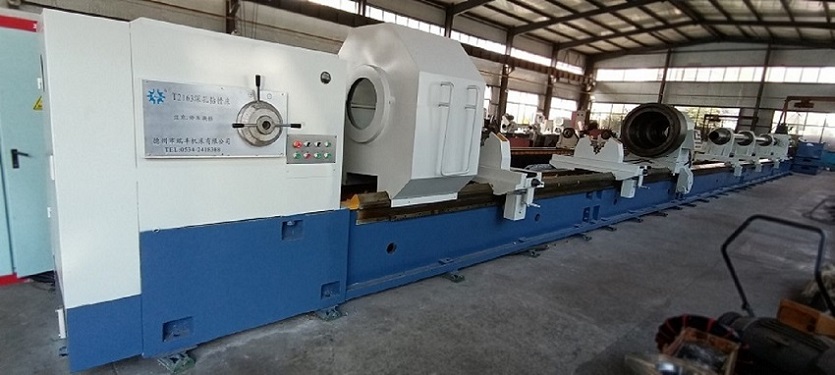

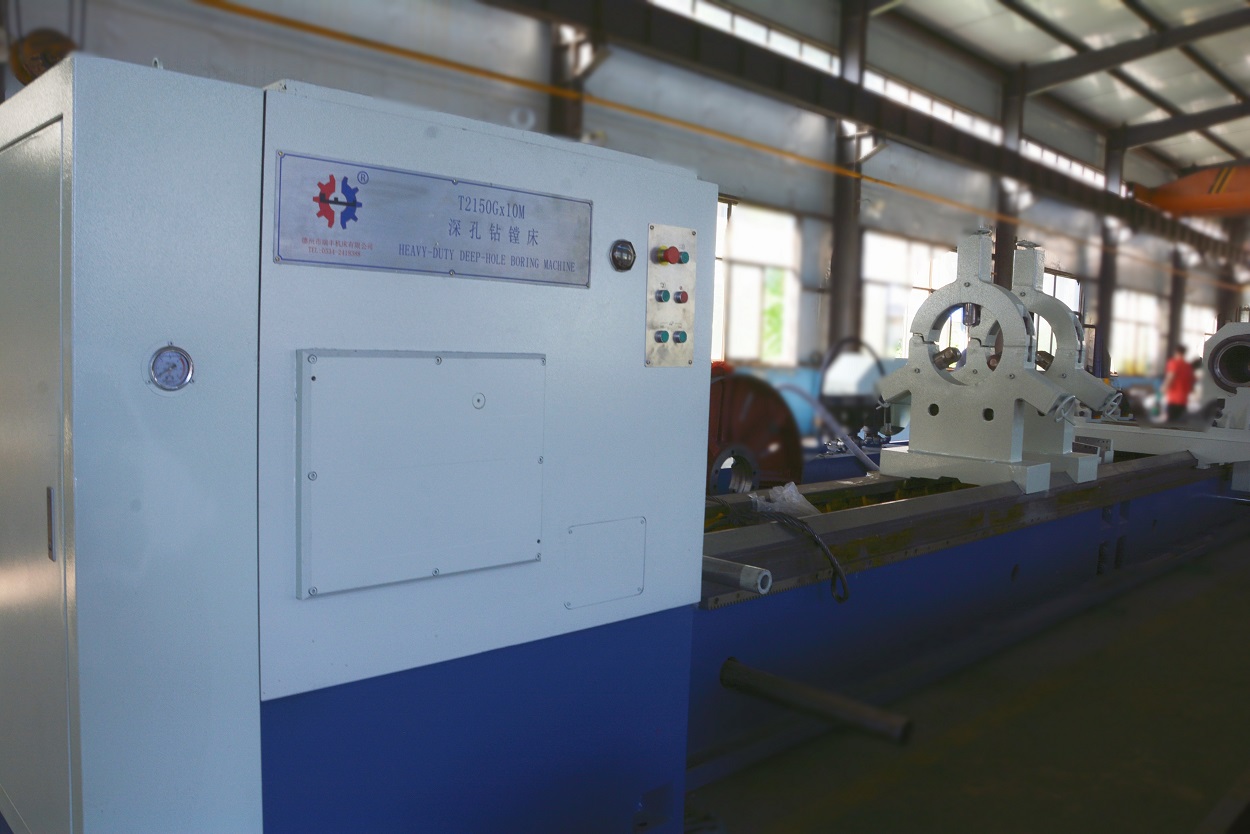

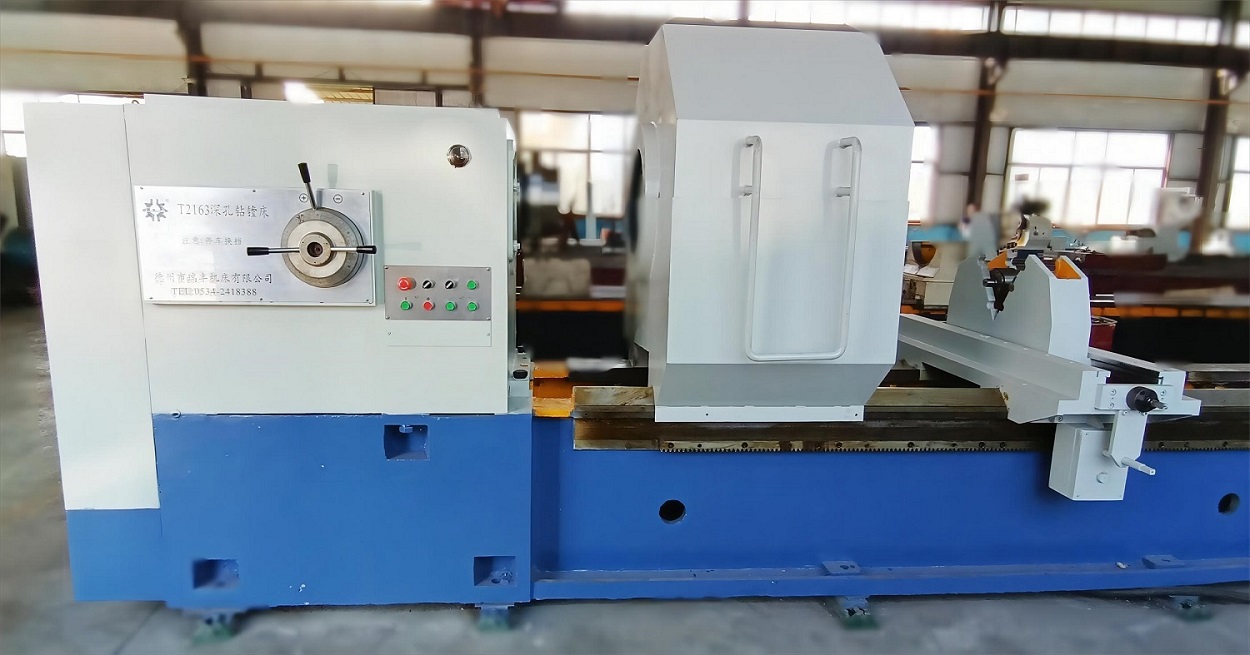

Cylinder Processing Equipment T2150-63

This machine tool is a special machine gadget for processing cylindrical deep hole parts, and is suitable for drilling and boring of cylindrical deep hole workpieces. When drilling, the indoors chip elimination method (BTA method) is used, that is, the oil is supplied through the oil dispenser, and the chips are discharged from the internal of the drill pipe to the chip removal bucket at the rear of the bed by way of the slicing area. When boring, the end of the boring bar is used to provide oil, and the chips are discharged through the slicing area to the chip discharge hopper at the head of the bed.

The machine gadget mattress guide rail is a rectangular guide rail, which has been quenched and has immoderate put on resistance; the feed screw is installed in the middle of the mattress information rail. The oil dispenser makes use of a servo motor to tighten the workpiece, the pressure is adjustable, and it is protected and reliable. The oil dispenser spindle and the machine device spindle have high concentricity and top rotation accuracy; it is convenient to change the guide sleeve. This machine device is a deep gap drilling and boring machine with effortless operation and manage and excessive processing efficiency.
