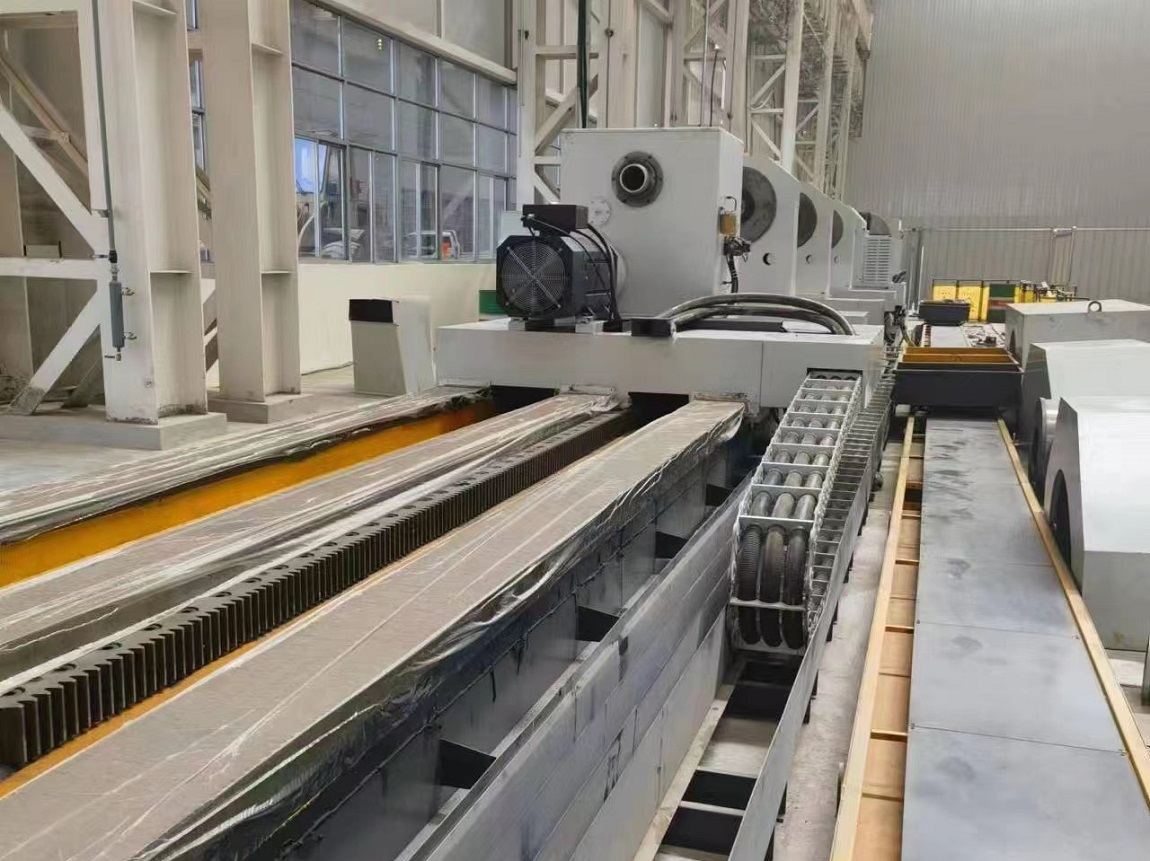

CNC Deep Hole Machining
1. High Precision: The deep hole machine tool can process cylindrical deep hole workpieces with great precision, including machine tool spindle holes, hydraulic cylinders, and cylinder block cylindrical through holes.
2. Versatile Functionality: In addition to drilling and boring, this machine tool can also perform rolling processing. With optional drill rod boxes, it offers multiple working modes to choose from, including simultaneous rotation of workpiece and tool, reciprocating feed motion, and tool rotation with reciprocating feed motion.
3. Improved Efficiency: By utilizing exceptional tooling and various working modes, this machine tool significantly enhances processing efficiency, especially in drilling operations.
4. Durable Construction: The machine tool bed features a double-plane guide rail with a wide width, ensuring stability and durability even when handling heavy workpieces.
5. Wide Applications: The deep hole machine is suitable for processing not only standard cylindrical workpieces but also special-shaped ones, making it a versatile solution for various industries.

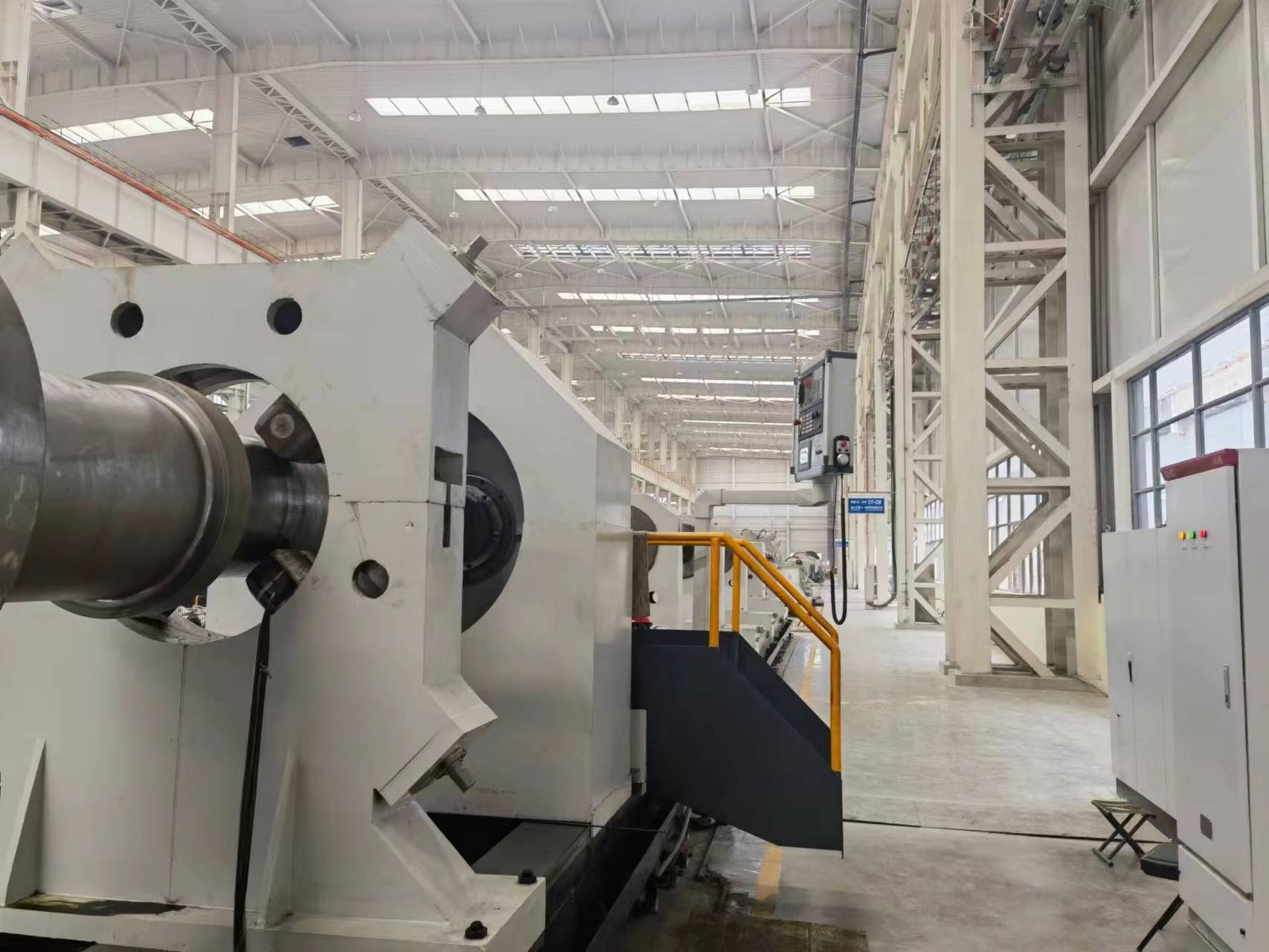

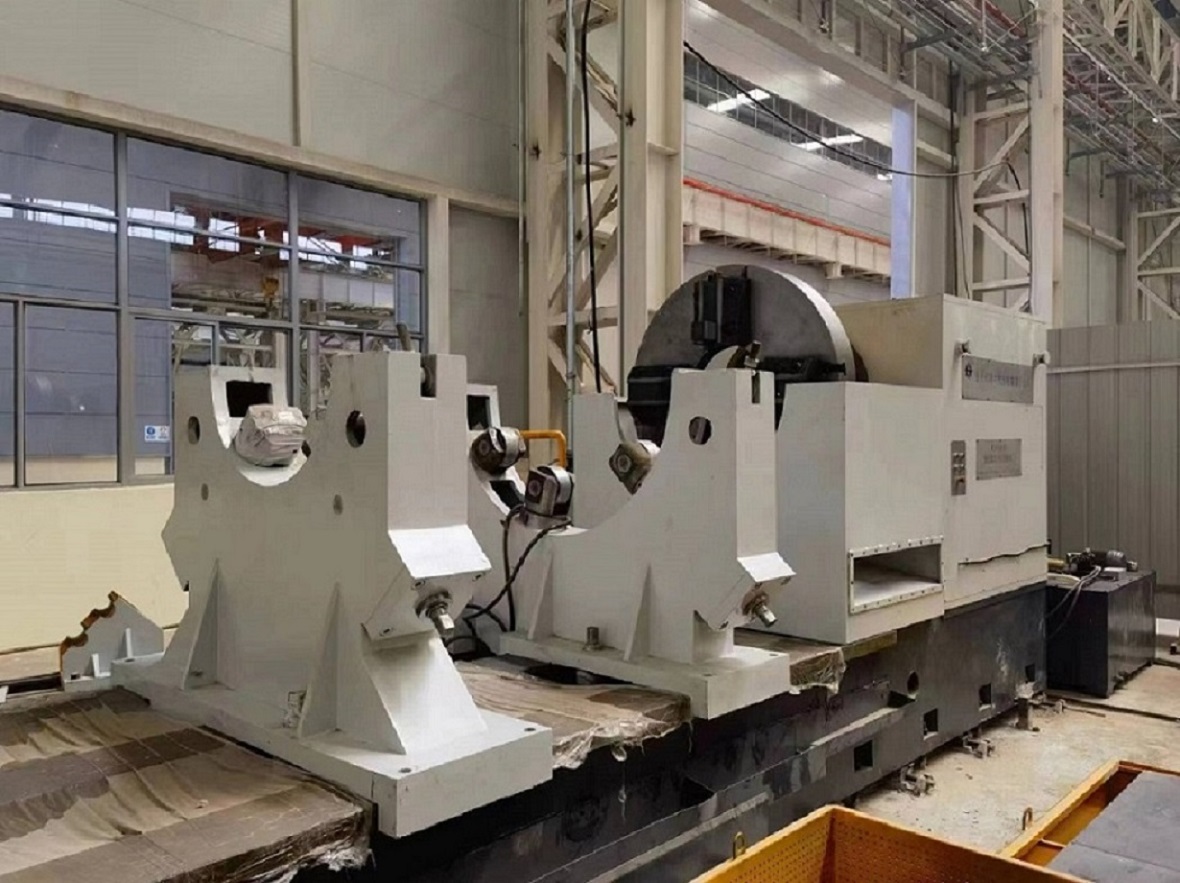

The Deep Hole Machine is a professional machine tool designed for processing cylindrical deep hole workpieces. It is capable of handling a variety of applications, such as machine tool spindle holes, mechanical hydraulic cylinders, cylinder block cylindrical through holes, blind holes, and step holes. With its exceptional tooling, it can also process special-shaped workpieces.
This versatile machine not only performs drilling and boring operations but also offers the option for rolling processing. By equipping the machine with an optional drill rod box, you can choose from the following working modes:
1. Workpiece rotation with simultaneous tool rotation.
2. Workpiece rotation without tool rotation, only reciprocating feed motion.
3. Workpiece stationary, tool rotation with reciprocating feed motion.
These options significantly enhance processing efficiency and provide additional advantages in drilling processing technology, ensuring stability and precision during operation.
Whether you require CNC deep hole machining or heavy-duty drilling and boring capabilities, the Deep Hole Machine is the ideal solution for your industrial needs. Its advanced features and professional design make it an indispensable tool in various industries.
SPECIFICATION
| SPECIFICATION | T2180 | T21100 | T21125 |
| Maximum diameter of boring | Φ800mm | Φ1000mm | Φ1200mm |
| Hole size | Φ60-Φ150mm | Φ60-Φ150mm | Φ60-Φ150mm |
| Depth of boring | 1000-20000mm | 1000-20000mm | 1000-20000mm |
| Spindle center height | 800mm | 1000mm | 1300mm |
| Clamping diameter (Chuck) | Φ320-Φ1450mm | Φ320-Φ1850mm | Φ320-Φ2350mm |
| Clamping diameter (Steady Rest) | Φ320-Φ950mm | Φ320-Φ950mm | Φ320-Φ950mm |
| Clamping diameter (Console) | Φ320-Φ1250mm | Φ320-Φ1600mm | Φ320-Φ1800mm |
| HEAD STOCK motor power | 55kW DC motor | 75kW DC motor | 75kW DC motor |
| HEAD STOCK speed range | 3-120r/min | 3-120r/min | 3-120r/min |
| Motor power of drill pipe | 45kW | 45kW | 45kW |
| Drill pipe speed range | 16-270r/min 12types | 16-270r/min 12types | 16-270r/min 12types |
| Feed motor power | 7.5kW | 7.5kW | 7.5kW |
| Feed speed range | 0.5-600r/min | 0.5-600r/min | 0.5-600r/min |
| Fast motor power | 11kW | 11kW | 11kW |
| Hydraulic pump motor power | 1.5kW | 1.5kW | 1.5kW |
| Coolant pump motor | 11kW 4sets | 11kW 4sets | 11kW 4sets |
| Rated working pressure of cooling system | 2.5MPa | 2.5MPa | 2.5MPa |
| Cooling system flow | 200-800L/min | 200-800L/min | 200-800L/min |
| System | SIEMENS,Delta, KND CNC, GSK CNC | ||
*Sample reference data, customization available
EXCELLENT QUALITY

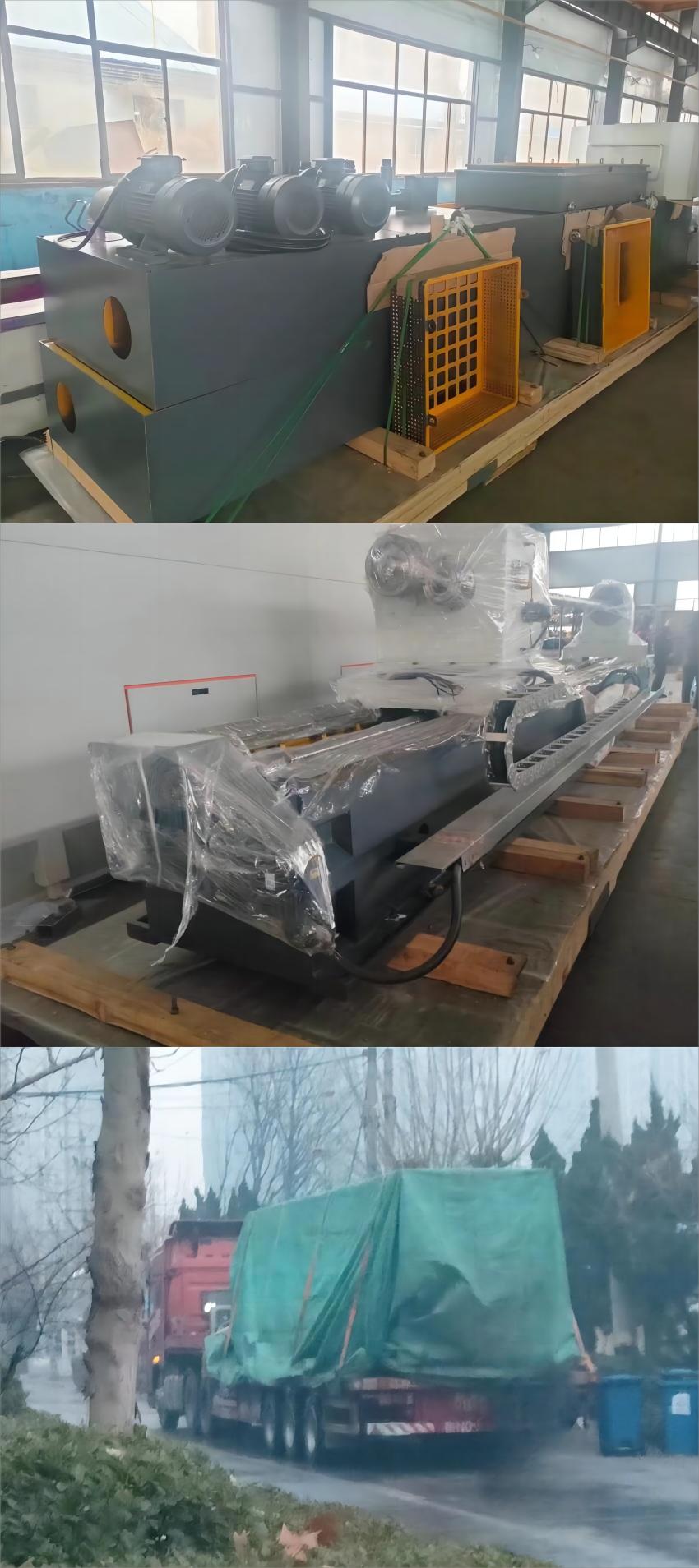

PACKAGING AND DELIVERY SCENARIOS
